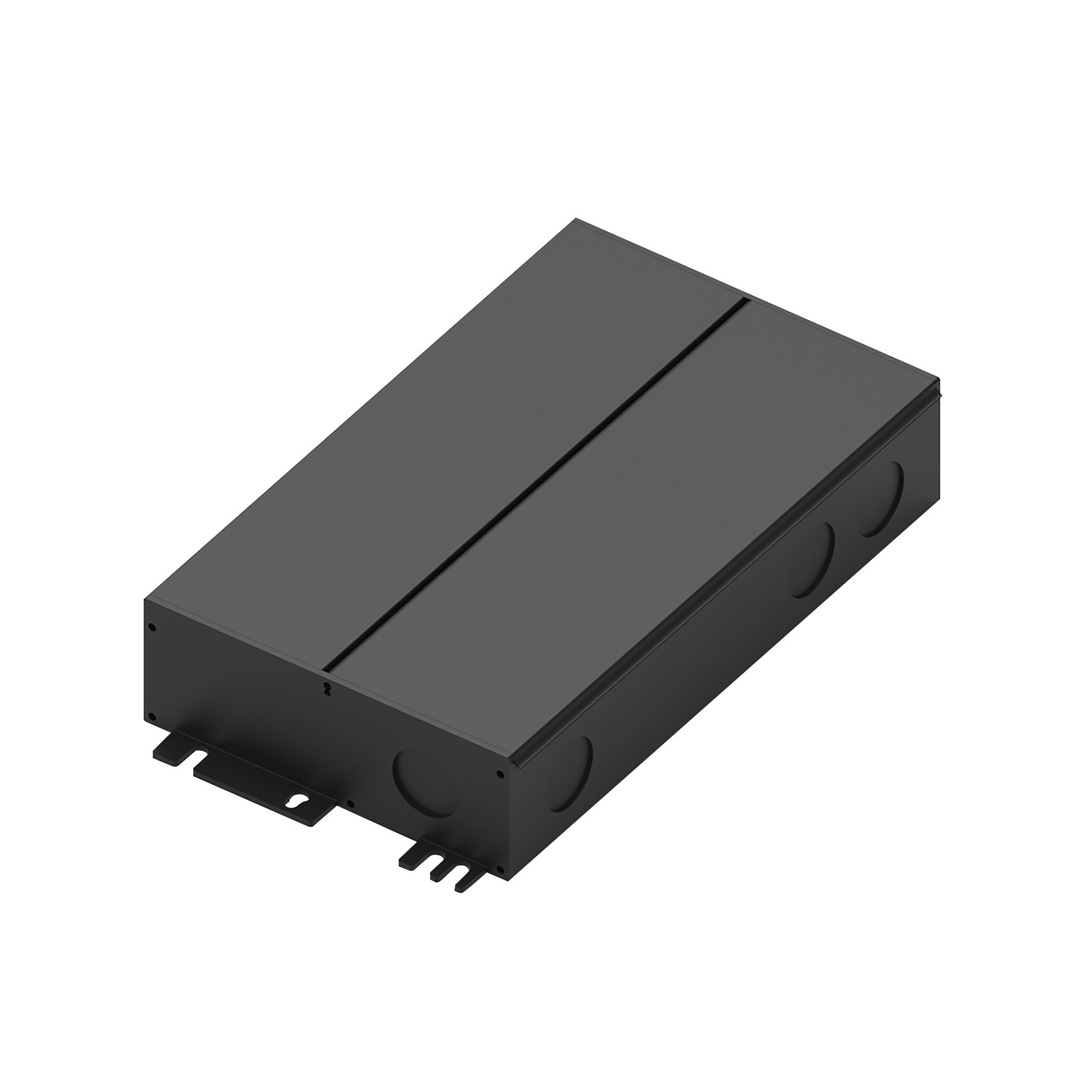

NPSU-96W/24
24V 96W Constant Voltage Class 2 Dimmable Driver (Phase, 0-10V & PWM dimming)
24V Constant Voltage Class 2 Dimmable LED driver can be used with Nora Lighting’s 24 Volt systems. Compatible with Triac, ELV, MLV, 0-10V, or PWM dimmers and a wide range of applications. NEMA 4X enclosure is rated for wet locations and cULus listed.
Input Voltage: 110V-277V
Output Voltage: 24VDC
Wattage: 96W
Dimming: Triac, ELV, MLV, 0-10V, or PWM
Knockouts: Five Knockouts
Listings: cULus Listed, NEMX 4X, Wet Location Rated
Optional Accessories:
NALTL-10: 10′ Power Line Connector
NALTL-30: 30′ Power Line Connector
