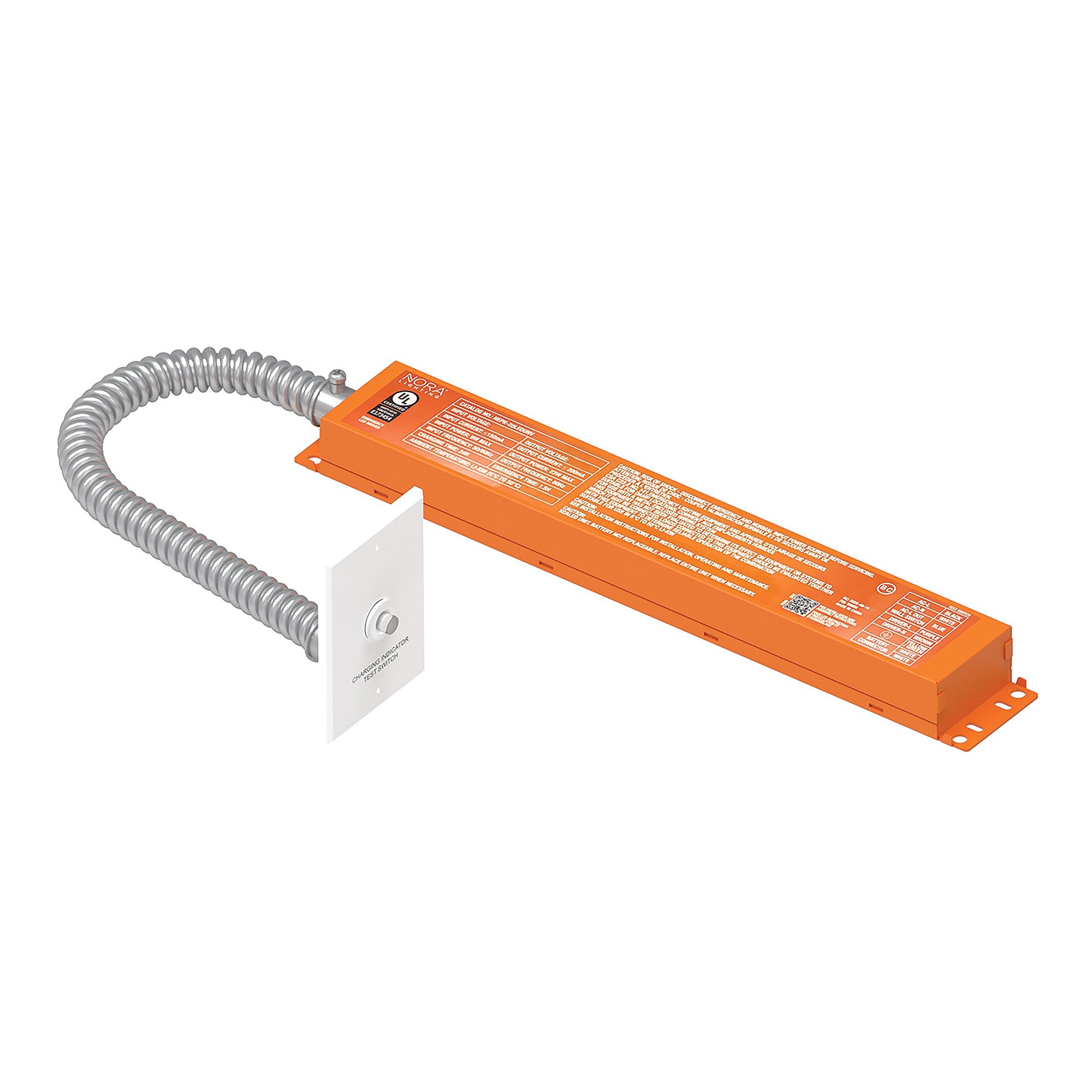

NEPK-20LEDUNV

20W Emergency LED Driver with Remote Test Switch

Emergency LED driver for use with new or existing LED luminaires. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.

FEATURES

  • Listed for field installation – UL 924 and CSA C2.22 No 141
  • Controlled power for predictable discharge
  • Includes wall plate with test switch

Input Voltage: 100-347AC

Output Voltage: 170VDC

Output Wattage: 20W

Compatible Luminaires:
NCSC-R4D1TW: 4″ Contractor Series Can-less Deep Downlight
NCSC-R4W2TW: 4″ Contractor Series Can-less Wafer Downlight
NCSC-R6D1TW: 6″ Contractor Series Can-less Deep Downlight
NCSC-R6W2TW: 6″ Contractor Series Can-less Wafer Downlight
NPTPSW-E22: 2’x2′ Frame Light
NPTPSW-E24: 2’x4′ Frame Light
NQZ2-41TWTW-MPW: 4″ Quartz Round Can-less Downlight
NQZ2-61TWTW-MPW: 6″ Quartz Round Can-less Downlight
NQZ2-66TWTW-MPW: 6″ Quartz Square Can-less Downlight
NQZ2-81TWTW-MPW: 8″ Quartz Round Can-less Downlight
NQZ2-86TWTW-MPW: 6″ Quartz Square Can-less Downlight
NRLM-8: 8″ RLM LED Shade
NRLM-10: 10″ RLM LED Shade
NRLM-16: 16″ RLM LED Shade
NYUD-3: 3″ Up & Down Wall Mounted Cylinder

Optional Accessory:
NEPKA-20/23LEDRTS: Ribbon Test Switch replaces the Remote Test Switch
