NEPK-07LEDUNV

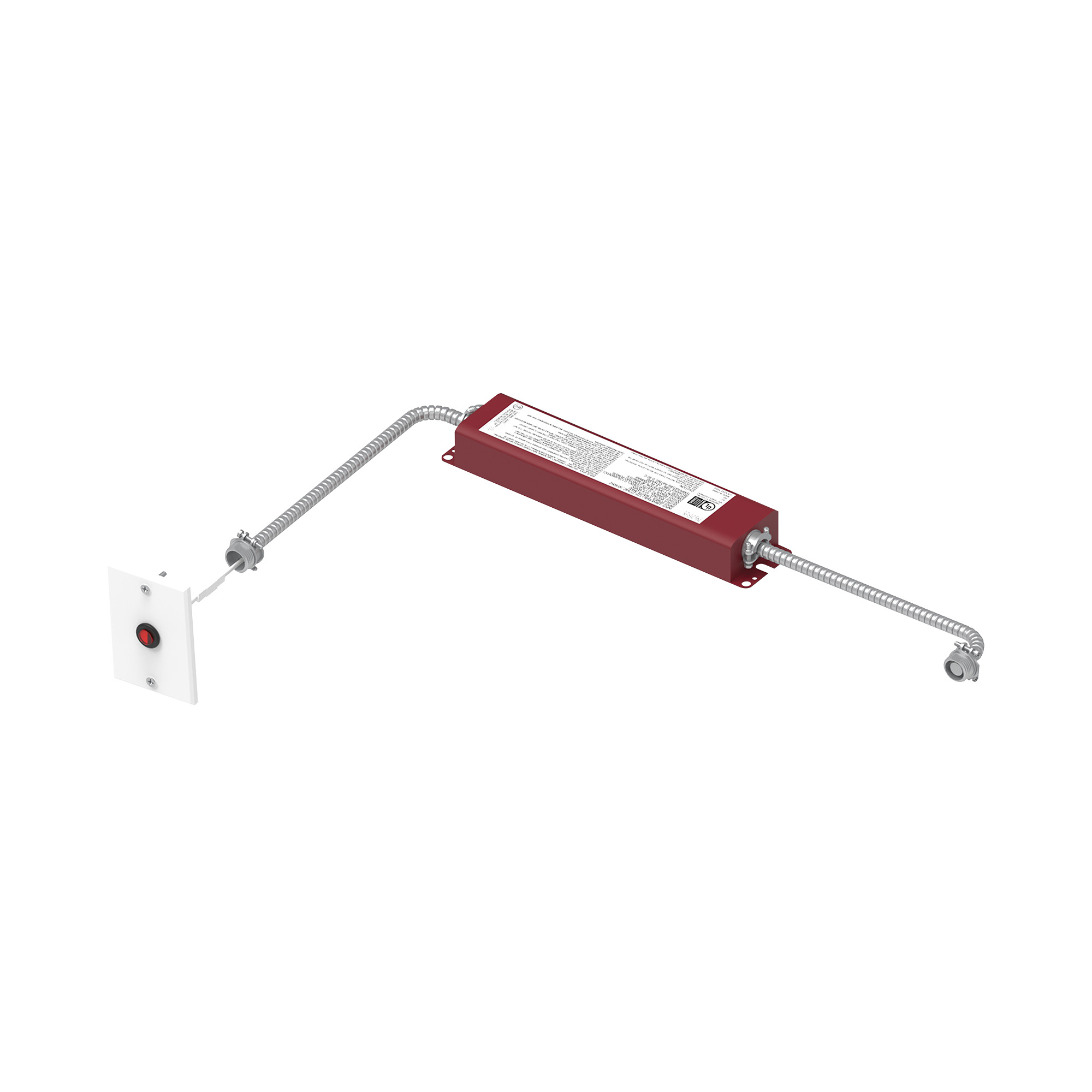

Emergency LED Driver with Remote Test Switch

Emergency LED driver for use with new or existing LED luminaires. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.

FEATURES

  • Listed for field installation – UL 924 and CSA C2.22 No 141
  • Class 2 output – UL 1310 certified, CSA 22.2 No 223-M91
  • Controlled power for predictable discharge
  • 10 – 60VDC for wide range of LED loads
  • Universal input (120 through 277VAC, 50/60Hz)
  • Includes wall plate with test switch
  • Certified to the energy efficiency standards of California Title 20
  • Includes wall plate with test switch

Downloads

Category:

Downloads

• Specification Sheet

• Instruction Sheet

Additional information

Light Source

LED
