NEPK-23LEDUNV-JB

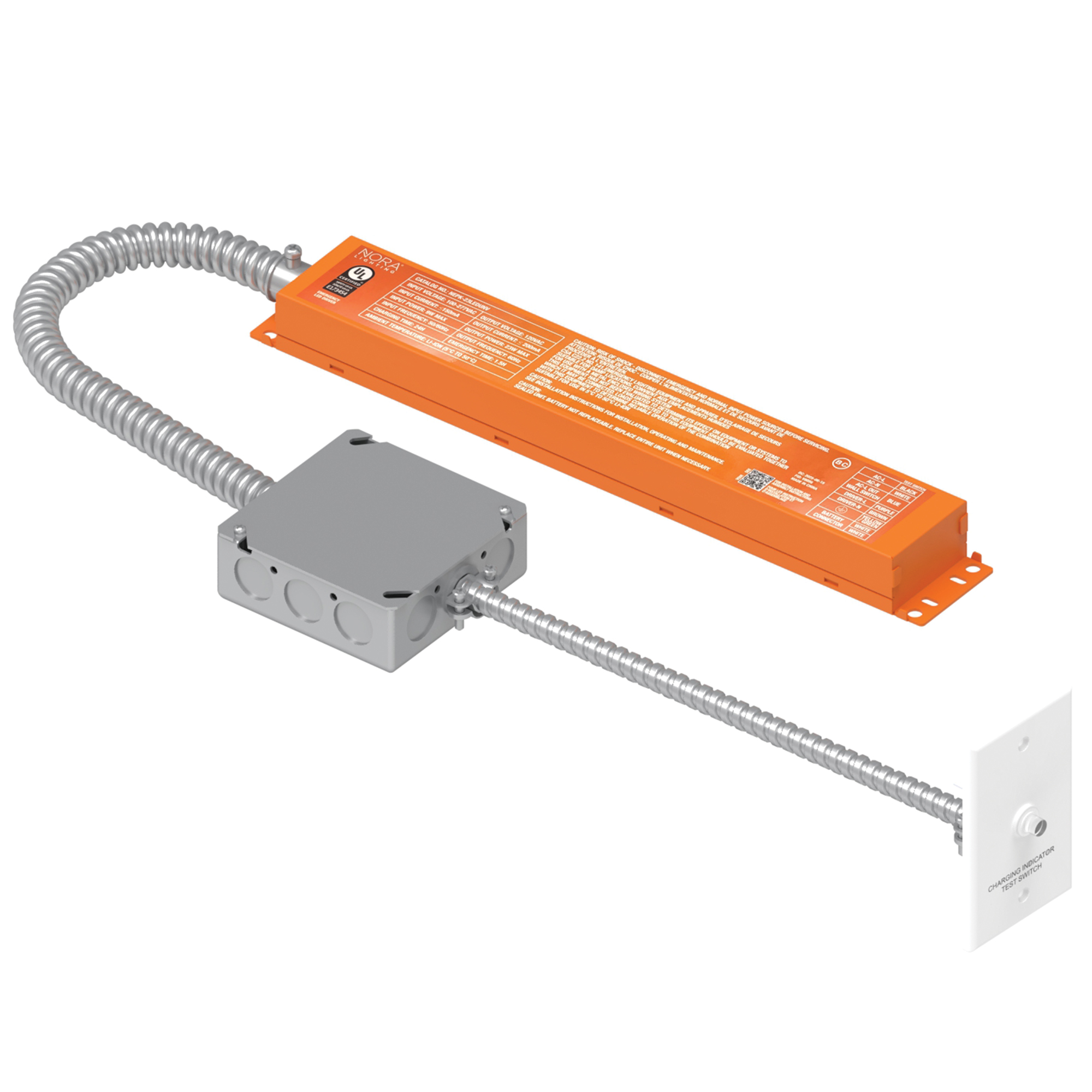

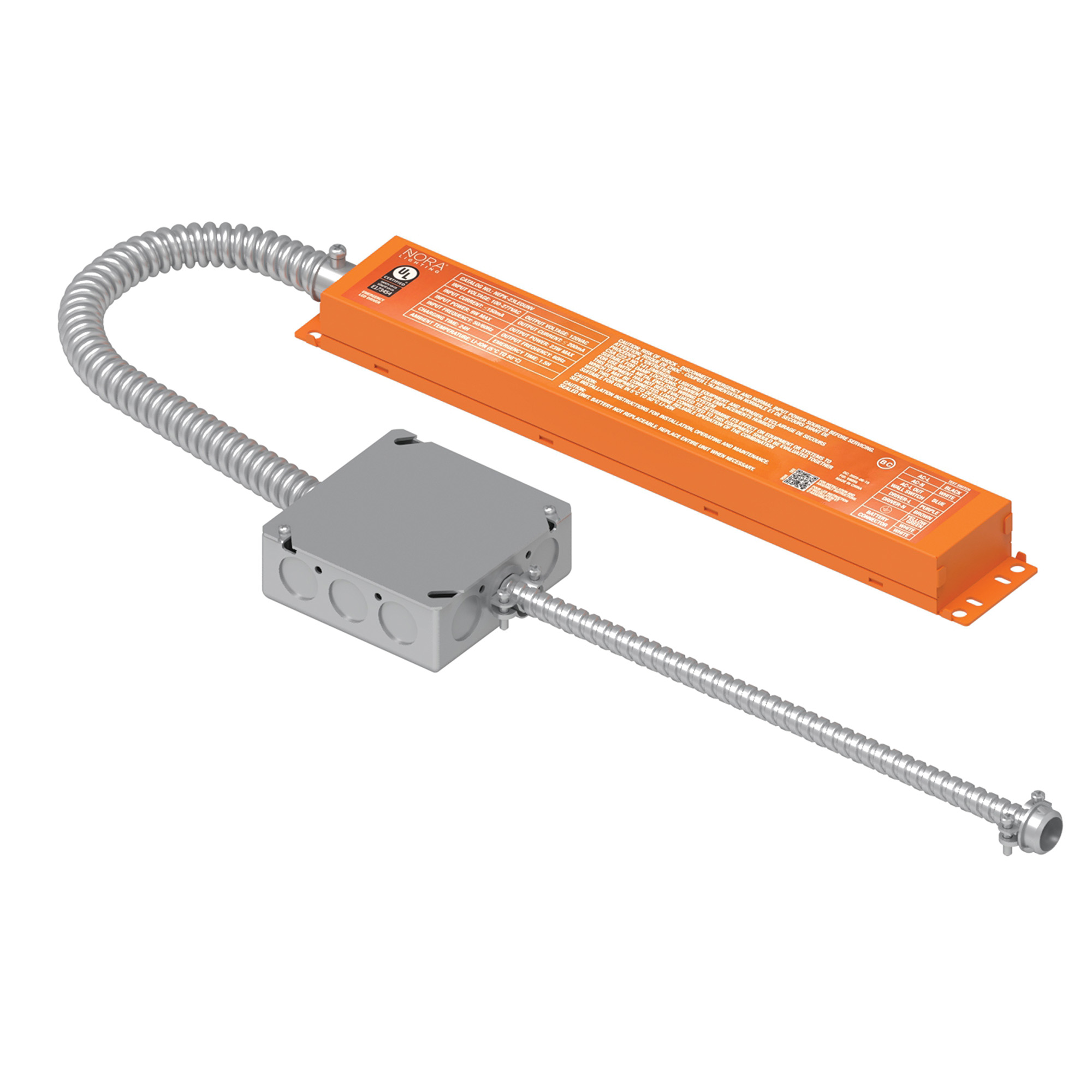

Emergency LED driver kit for use with new or existing LED luminaires. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates for a minimum of 90 minutes to allow safe egress during a power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.

FEATURES

• Listed for field installation – UL 924 and CSA C2.22 No 141
• Controlled power for predictable discharge
• Includes wall plate with test switch

Input Voltage: 120-277VAC

Output Voltage: 120VAC (during emergency operation)

Output Wattage: 23W

Compatible Luminaires:
NCSD: 6″ Contractor Series Disk Lights
NELOCAC-16R: 16″ ELO Surface Mount
NELOSW: 4″, 6″ & 8″ ELO Surface Mounts with Selectable Lumens & CCT
NJCB-12: 2″ & 4″ Iolite Can-less Driver Box
NLOPAC-R4509T24: 4″ Opal Surface Mount
NLOPAC-R4REGT24: 4″ Regressed AC Opal Surface Mount
NLOPAC-R4TW: 4″ Opal Surface Mount with Selectable CCT
NLOPAC-R6509T24: 6″ Opal Surface Mount
NLOPAC-R6REGT24: 6″ Regressed Opal Surface Mount with Dedicated CCT
NLOPAC-R6REGT24TW: 6″ Regressed Opal Surface Mount with Selectable CCT
NLOPAC-R6TW: 6″ Opal Surface Mount with Selectable CCT
NLOPAC2-R6509T24: 6″ Opal 2 Surface Mount
NLOS: 4″, 6″ & 7″ SURF Surface Mounts
NLTH: 4″, 6″ & 8″ Theia Can-less Downlights
NM1-PRDC: 1″ M1+ Can-less Downlight
NM2: 2″ M2 Can-less Downlights
NM4: 4″ M4 Can-less Downlights
NMW: 2″ & 4″ M-Wave Can-less Adjustable Downlights
NSLIM: 4″ Slim Surface Mounts

Accessories:
NEPKA-20/23LEDRTS: Ribbon Test Switch replaces the Remote Test Switch
NEPKA-20LEDFPTS: Replacement Remote Test Switch
