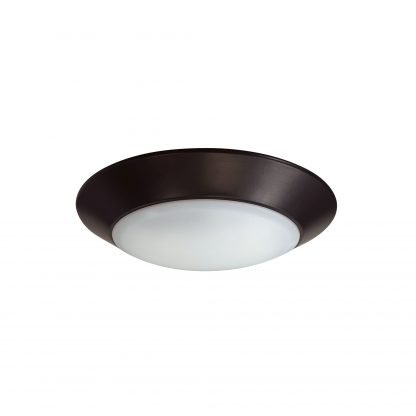

NLOPAC-R6TW

6" AC Opal with Selectable CCT, Over 1200lm

The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.

Features

  • AC LED (No Driver)
  • Dimmable
  • Five color temperatures in each fixture
  • Mount on standard 4″ junction box
  • ENERGY STAR certified
  • Suitable for use in closets when installed in accordance to NEC® Section 410.16 (A)(1) and 410.16 (C)(1)
  • Certified to the high efficacy requirements of California Title 24 JA8-2022

Lumens / Wattage: Over 1200lm / 16W

Color Temperature: Selectable CCT (2700K/3000K/3500K/4000K/5000K)

Color Rendering Index: 90+ CRI

Finish: Black, Bronze, Natural Metal or White

Retrofit Kit: Each luminaire includes a retrofit kit

Optional Accessories:
NLOPAC-4BKT-2 = Universal Bracket for mounting on 3″ or 4″ junction boxes

Category:
• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

Additional information

Family

Opal

Light Source

LED

Aperture Size

6"

Construction Type

Retrofit, New Construction, Remodel

Options

Title 24, ENERGY STAR certified, Wet Location

Application

Downlight

Mounting Type

Surface Mounted

Color Temperature

Selectable CCT
