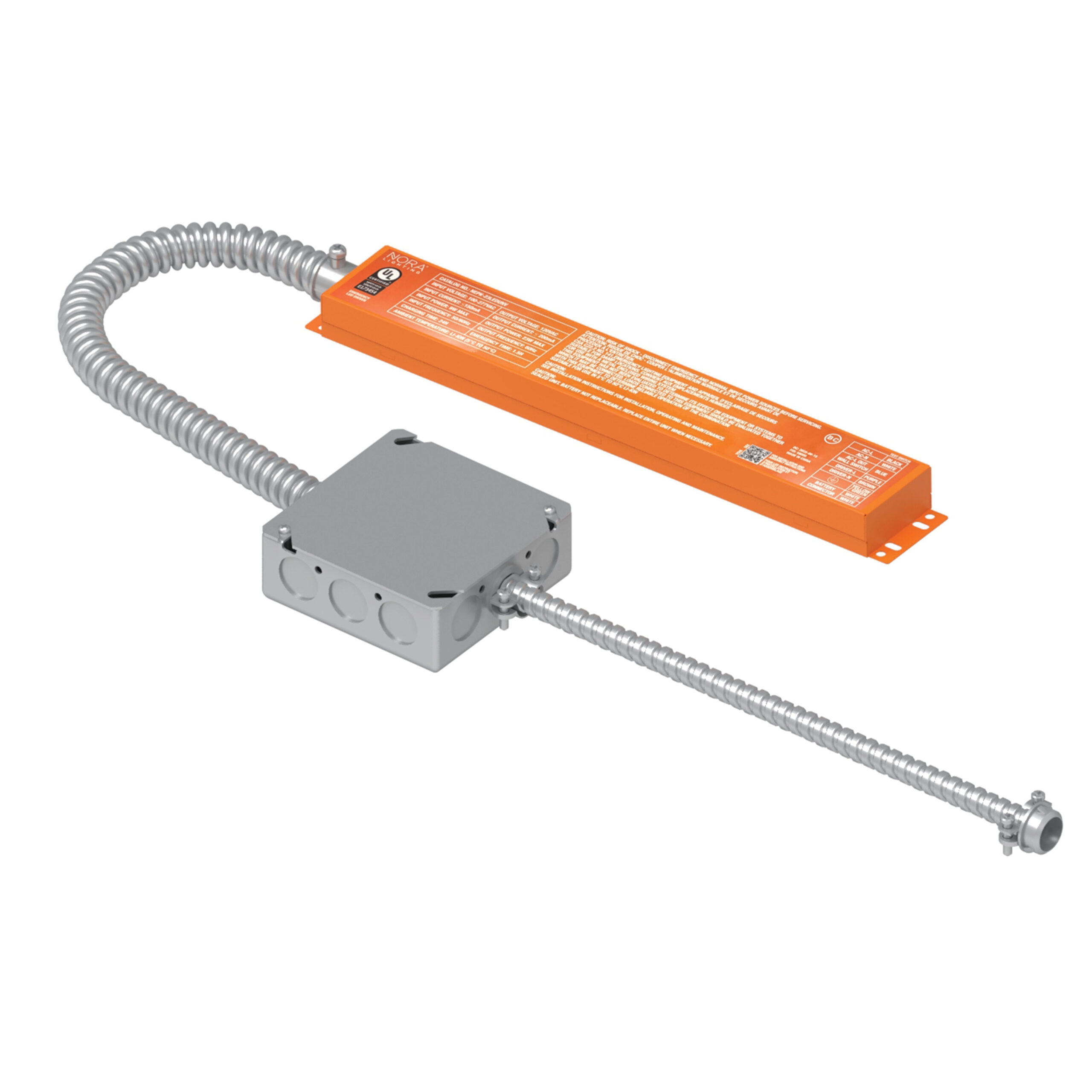

NEPK-20LEDUNV-JB

Emergency LED driver kit for use with new or existing LED luminaires. The driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode. Separated feed and luminarie connections. Great for canless applications and drivers with small enclosures.

FEATURES

• Listed for field installation – UL 924 and CSA C2.22 No 141
• Controlled power for predictable discharge

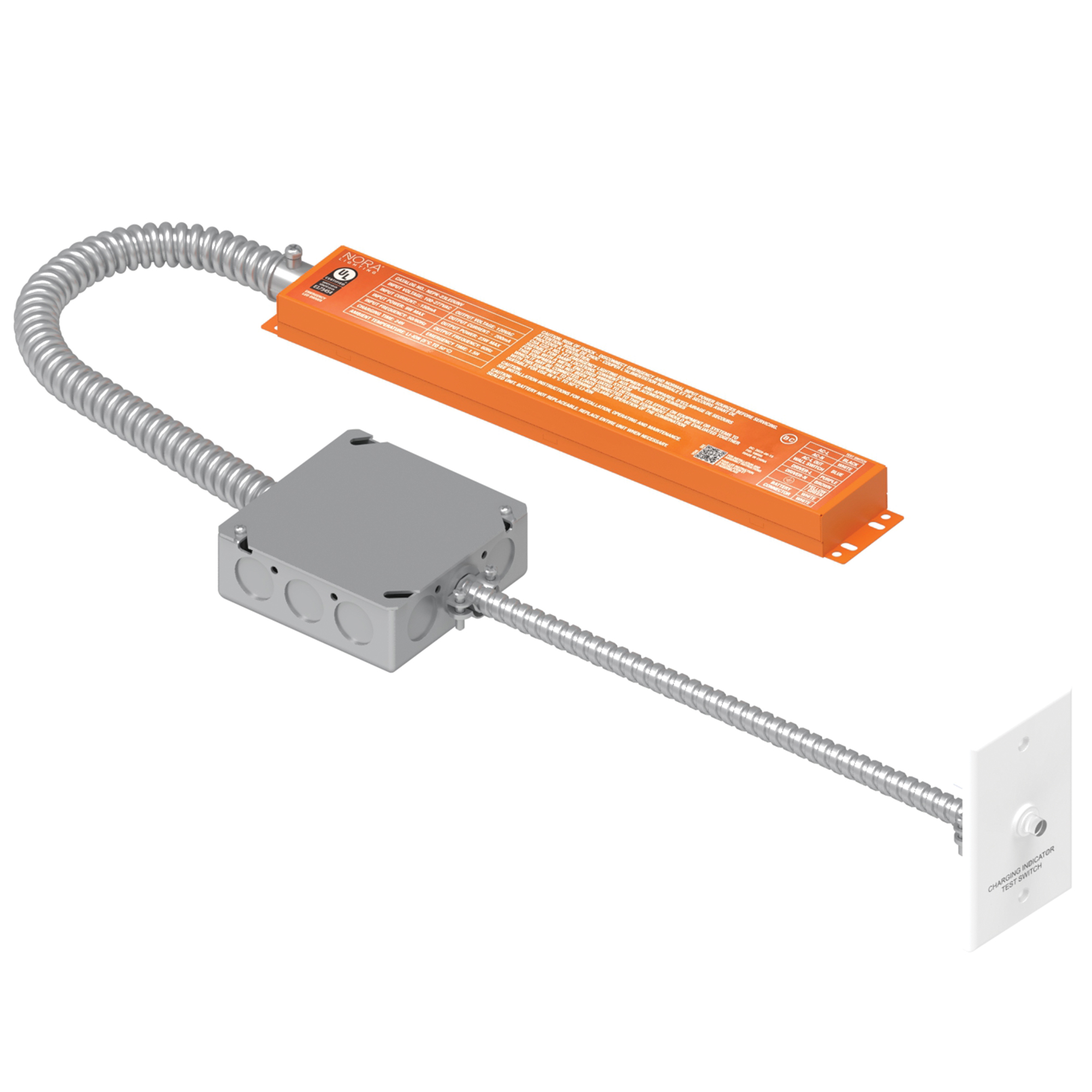

• Includes wall plate with test switch

Input Voltage: 100-347VAC

Output Voltage: 170VDC

Output Wattage: 20W

Compatible Luminaires:
NPTCBSW-22: 2’x2′ LED Troffer with Selectable Lumens & CCT
NPTCBSW-24: 2’x4′ LED Troffer with Selectable Lumens & CCT

Accessories:
NEPKA-20/23LEDRTS: Ribbon Test Switch replaces the Remote Test Switch
NEPKA-20LEDFPTS: Replacement Remote Test Switch
