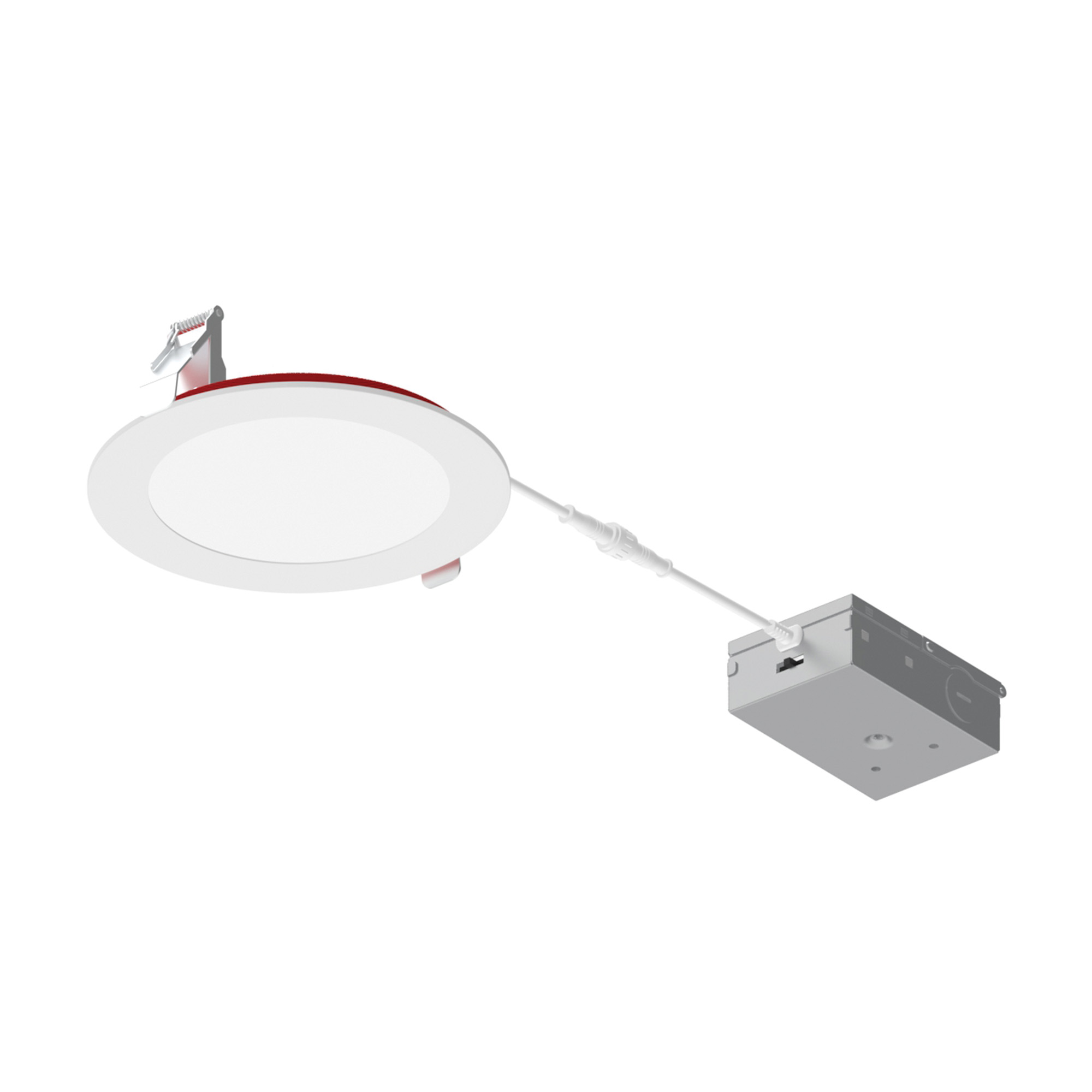

NFRC-R6W1TW
6" Fire Rated Can-less Flat LED Downlight with Selectable CCT, 1550 lumens
6″ Fire-rated can-less recessed LED downlights are ETL listed, tested and certified to UL 263 & ASTM E119 for 2-hour fire rating. Wafer design allows luminaires to be installed in shallow plenums and includes a selectable five color temperature switch. Multi-piece construction provides an extra layer of protection to prevent the spread of fire above the ceiling within a two-hour rating.
Features
- Listed and Certified to UL 263 & ASTM E119 for 2-Hour Fire Rating
- Multi-piece construction provides an extra layer of protection and prevents the spread of fire
- No housing required and includes pre-wired junction box
- Quick disconnect allows for easy installation Junction box includes color temperature switch
- IC Air-Tight rated
- Triac or ELV dimming
- cETLus Listed for Wet locations
- Certified to the high efficacy requirements of California Title 24 JA8-2022
Input Voltage: 120V (consult factory for 120-277V)
Lumens / Wattage: 1550lm / 15W
Color Temperature: Field Selectable CCT Switch (2700K / 3000K / 3500K / 4000K / 5000K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: Matte Powder White
Accessories:
NF-R246: Universal New Construction Frame-In
NEPK-20LEDUNV: 20W Emergency LED Driver with Remote Test Switch
