NPTCBSW-22

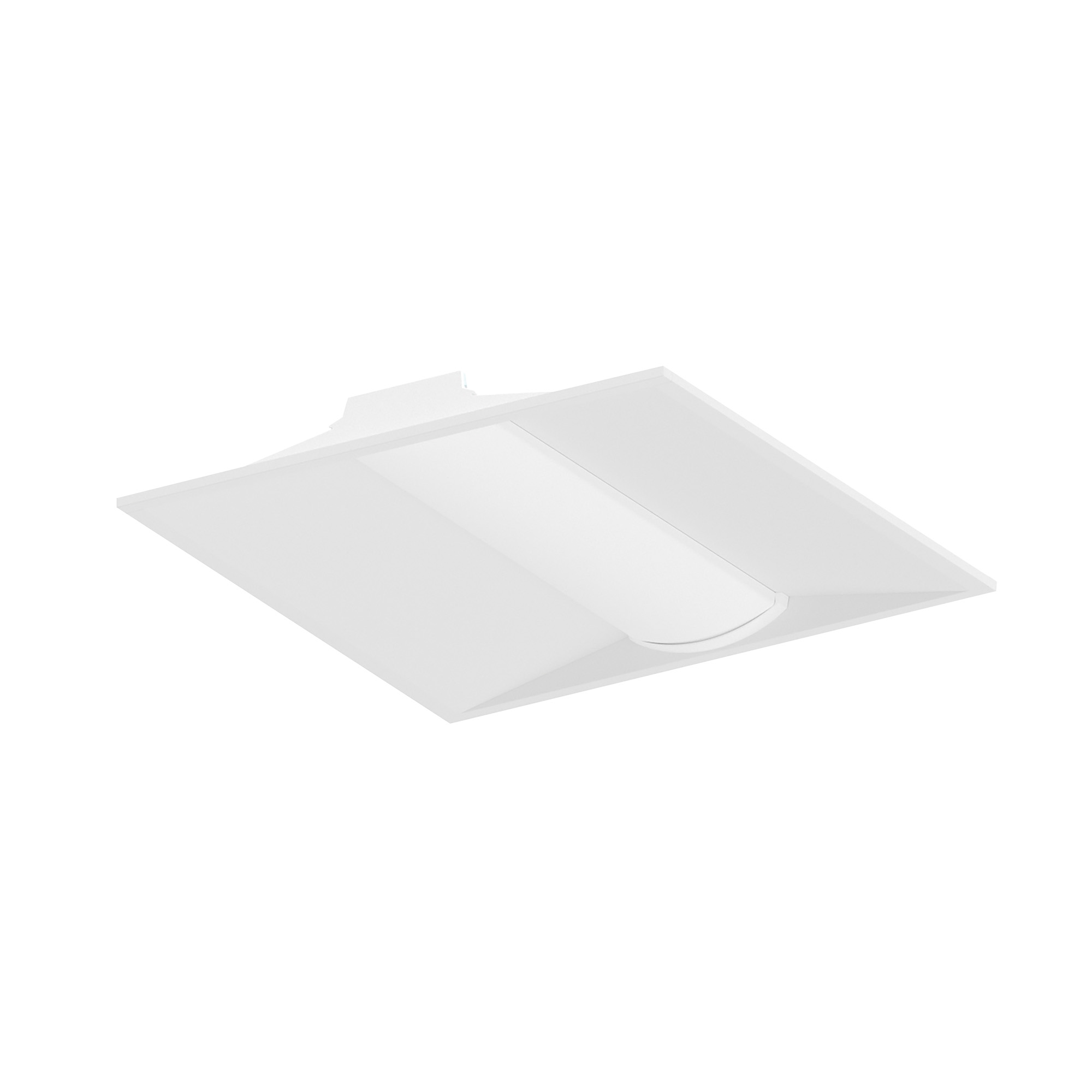

2'x2' LED Troffer with Selectable Lumens & CCT

*** Coming Soon, available Janaury 2026 ***

LED troffers provide both functionality and efficiency with two integrated, selectable switches. Selectable lumens allow for a variety of mounting heights, and Selectable CCT adjusts the color temperature. A smooth matte white finish provides glare-reducing general lighting for commercial and industrial applications. The luminaires are suitable for office, school, retail, hospital, and hospitality applications.

Features

  • Architectural style and quality
  • Complete room illumination
  • Soft, uniform reflectance
  • Fits most grid ceilings
  • Selectable Lumen switch changes the wattage and brightness level
  • Five color temperatures in each fixture
  • cULus Damp Location Listed
  • DLC listed

Input Voltage: 120-277VAC

Selectable Lumens: 2250lm / 18W; 3500lm / 28W; 4600lm / 38W

Color Temperature: Selectable CCT (3000K / 3500K / 4000K / 5000K / 6500K)

Dimming: 0-10V down to 10%

Finish: White

Emergency: Luminaires are compatible with a remote emergency kit (NPTCBSW-EMKIT)
