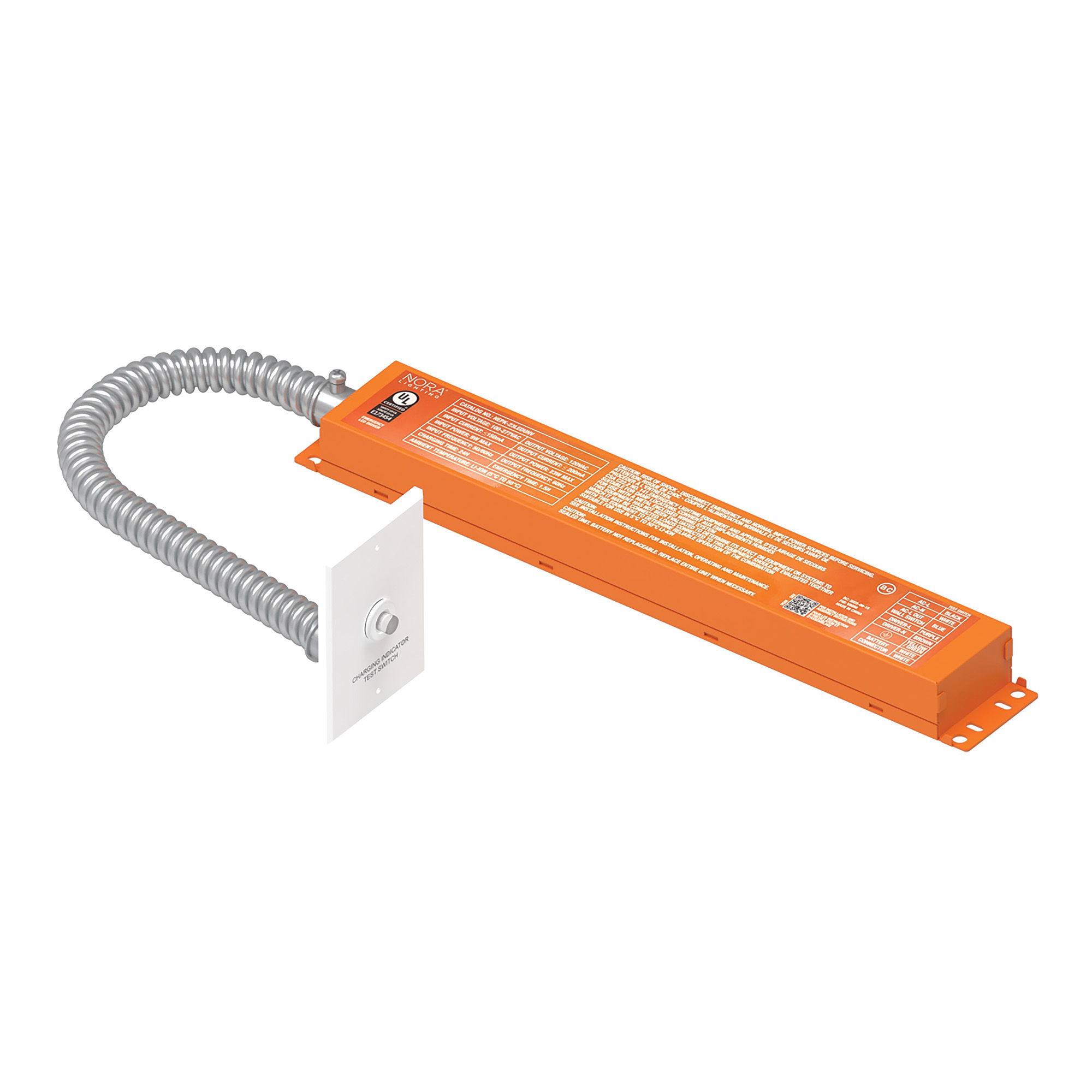

NEPK-23LEDUNV

23W Emergency LED Driver with Remote Test Switch

Emergency LED driver for use with new or existing LED luminaires. Driver’s circuitry automatically switches the luminaire between emergency and normal power operation during power loss and restoration. Operates at a reduced level for a minimum of 90 minutes to allow safe egress during power outage. Upon restoration to normal AC operation, the emergency driver returns to charging mode.

FEATURES

Listed for field installation – UL 924 and CSA C2.22 No 141
Controlled power for predictable discharge
Includes wall plate with test switch

Input Voltage: 120-277AC

Output Voltage: 120VAC (during emergency operation)

Output Wattage: 23W

Compatible Luminaires:
NCSC: 4″ & 6″ Contractor Series Can-less Downlights
NCSD: 6″ Contractor Series Disk Lights
NCSR: 4″ & 6″ Contractor Series Retrofits
NEFLINTW: 4″ & 6″ FLIN Can-less Regressed Baffle Downlights
NELOSW: 4″, 6″ & 8″ ELO Surface Mounts with Selectable Lumens & CCT
NFLAT: 4″ & 6″ FLAT Can-less Non-Metallic Downlights
NFLINA: 4″ & 6″ FLIN Can-less Adjustable Downlights
NFRC: 4″ & 6″ Fire Rated Can-less Downlights
NJCB-12: 2″ & 4″ Iolite Can-less Driver Box
NLCBC: 4″, 5″ & 6″ Cobalt Adjustable Retrofits
NLCBC2: 4″, 5″ & 6″ Cobalt Click Retrofits with Selectable CCT
NLRS: 6″ Sloped Retrofits
NLOPAC-R6REGT24TW: 6″ Regressed Opal Surface Mount
NLOPAC2-R6509T24: 6″ Opal 2 Surface Mount
NLOS: 4″, 6″ & 7″ SURF Surface Mounts
NLTH: 4″, 6″ & 8″ Theia Can-less Downlights
NM1-PRDC: 1″ M1+ Can-less Downlight
NM2: 2″ M2 Can-less Downlights
NM4: 4″ M4 Can-less Downlights
NMC: 4″ & 6″ M-Curve Can-less Adjustable Downlights
NMW: 2″ & 4″ M-Wave Can-less Adjustable Downlights
NOXAC-431TW: 4″ Onyx Retrofit Reflector with Selectable CCT
NOXAC-432TW: 4″ Onyx Retrofit Baffle with Selectable CCT
NOXAC-4RGTW: 4″ Onyx Adjustable Retrofit with Selectable CCT
NOXAC-4RWTW: 4″ Onyx Round Wall Wash Retrofit with Selectable CCT
NOXAC-4SWTW: 4″ Onyx Square Wall Wash Retrofit with Selectable CCT
NOXAC-5631TW: 5″/6″ Onyx Retrofit Reflector with Selectable CCT
NOXAC-5632TW: 5″/6″ Onyx Retrofit Baffle with Selectable CCT
NOXAC-56RGTW: 5″/6″ Onyx Adjustable Retrofit with Selectable CCT
NPR: 4″ & 5″/6″ 120V Pearl Retrofits
NRMC3: 4″, 5″ & 6″ Marquise Retrofits
NSLIM: 4″ Slim Surface Mounts
