NPR-4RPHA

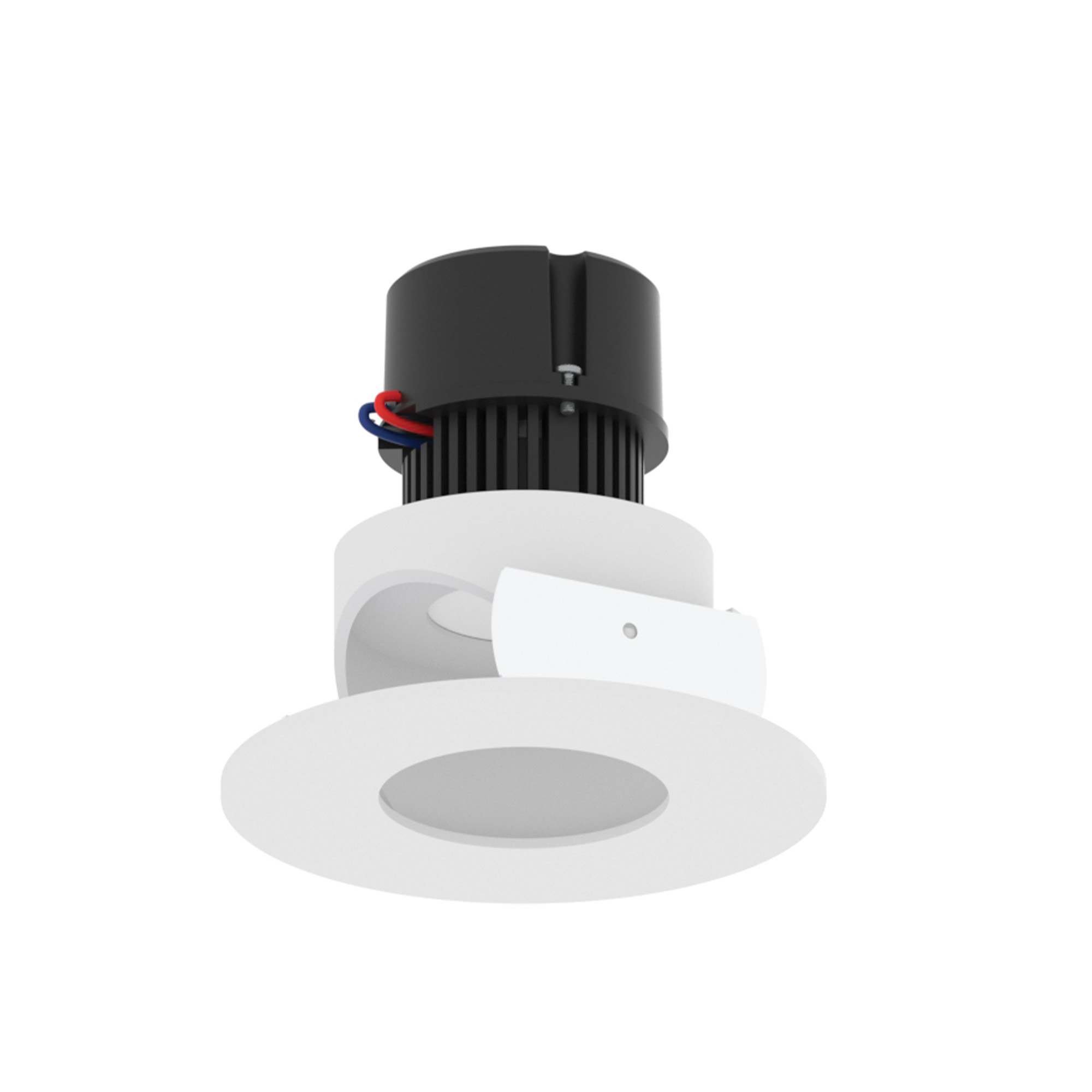

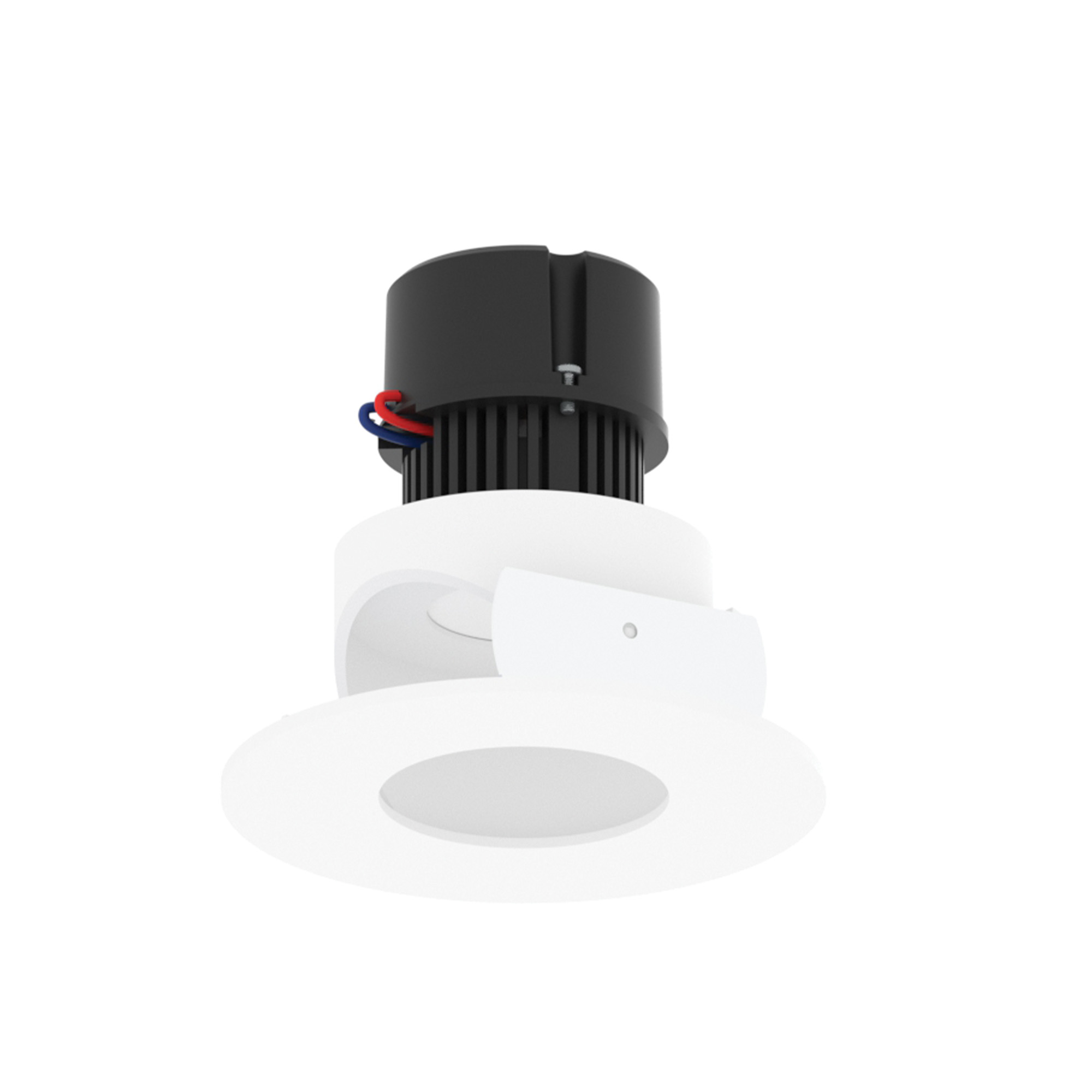

4" Pearl 120V LED Round Adjustable Pinhole Retrofit

4″ Pearl LED Retrofit series is cULus classified for with NSIC-4LMRAT (maximum adjustability housing). The 4″ retrofit luminaires deliver over 750 lumens with a 2″ pinhole to focus the beam spread through a small opening. They are also available in a fixed downlight.

Input Voltage: 120V

Socket: Medium base socket adapter included

Color Temperatures: 2700K, 3000K, 3500K, 4000K, Comfort Dim (warm dimming)

Lumens / Wattage: 750lm (550lm with Comfort Dim) / 12W

Optics Included: Spot, Narrow Flood, Flood (field changeable)

Compatible Housing:
NSIC-4LMRAT = Max. Adjustability LED Dedicated ICAT Housing

Optional Remote Emergency:
NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch

• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

• Brochure
