NPR-4SG

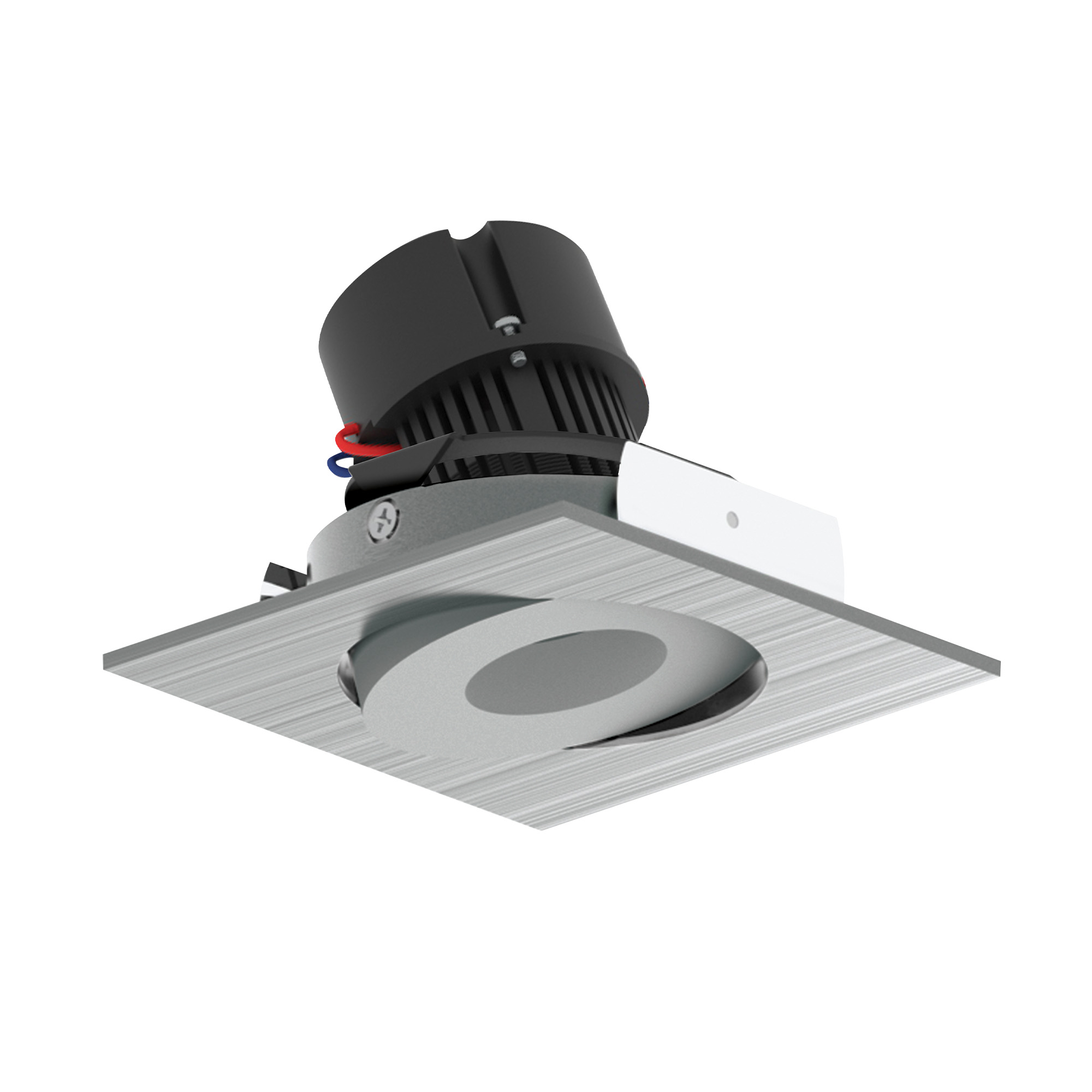

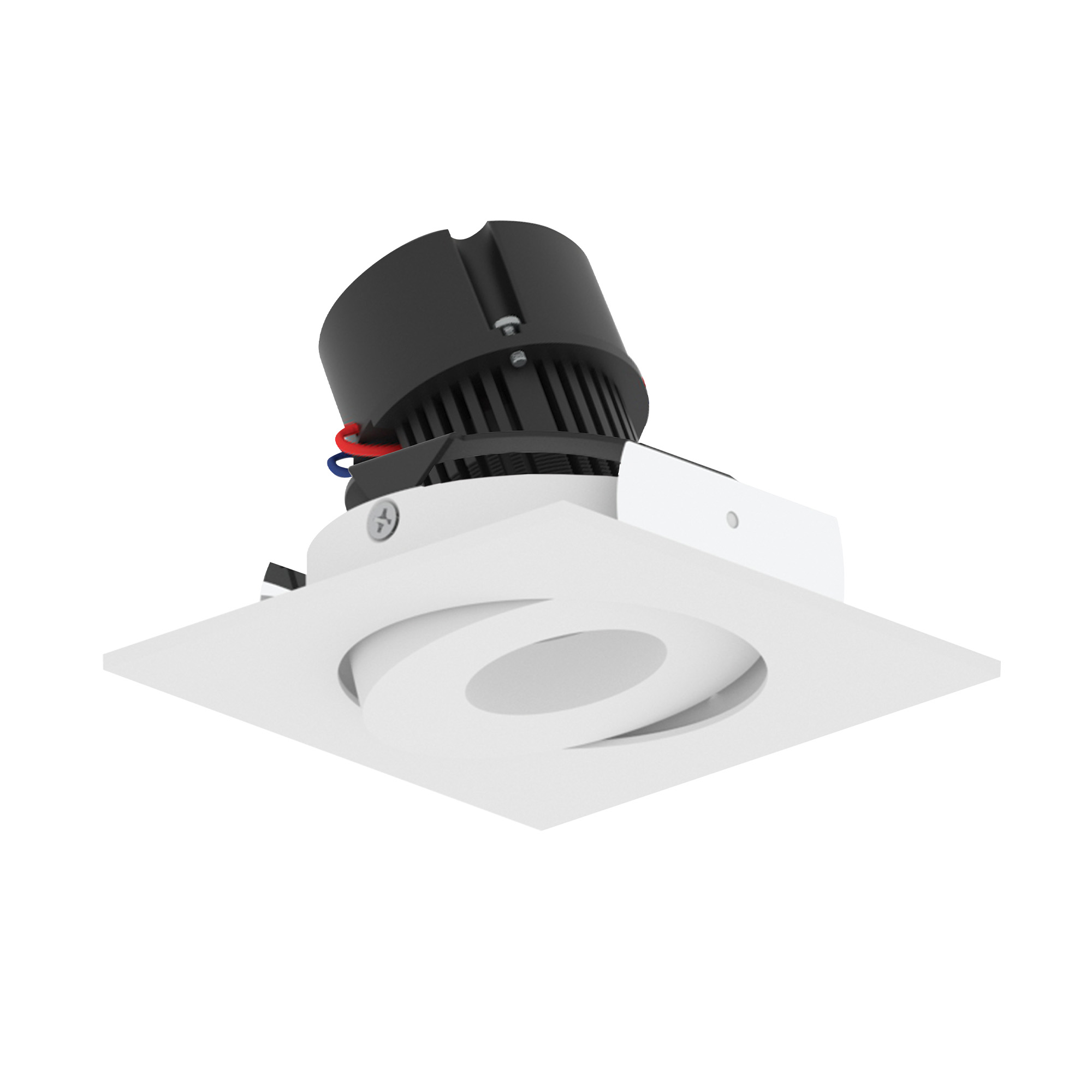

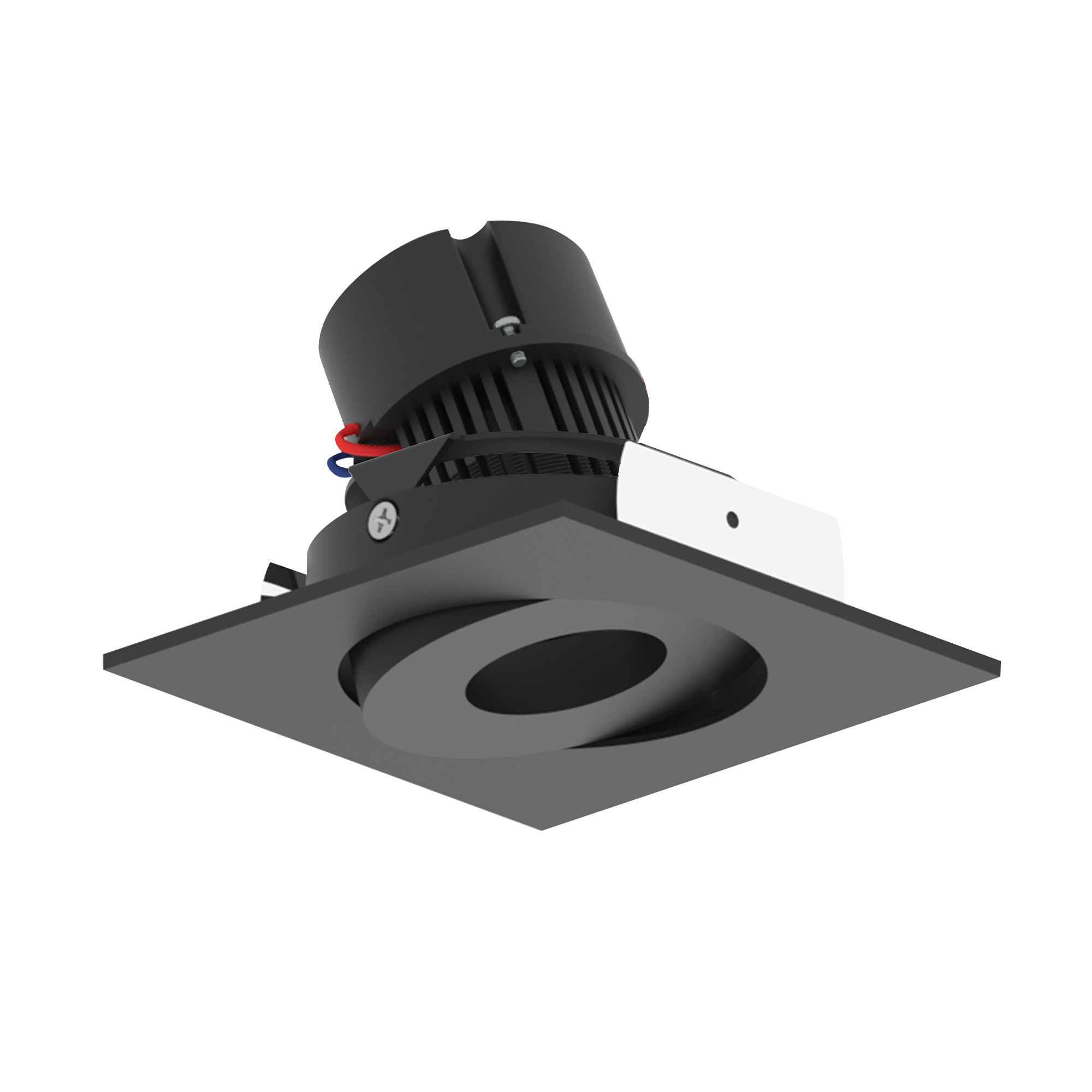

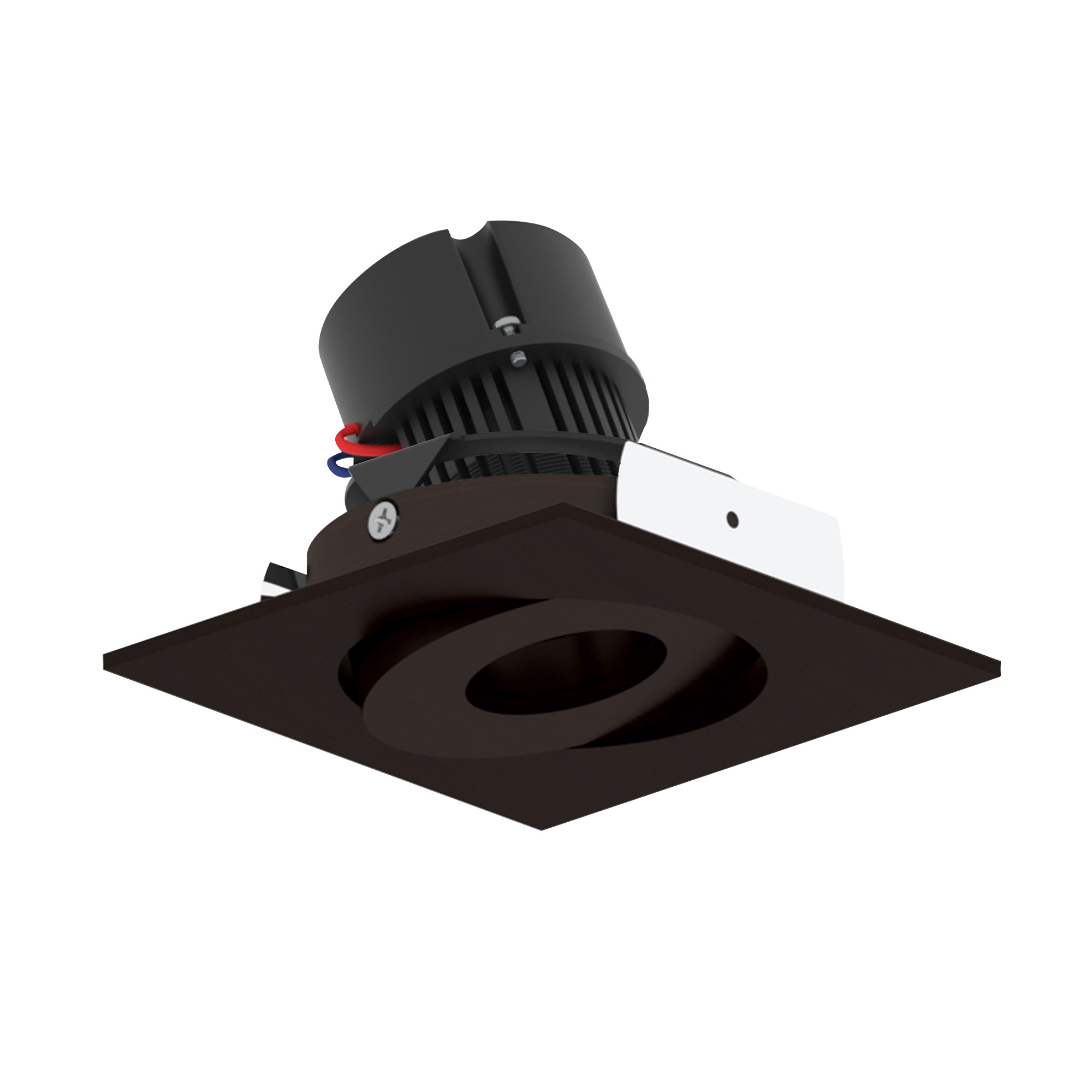

4" Pearl 120V LED Square Adjustable Gimbal Retrofit
4″ Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4″ retrofit luminaires deliver over 1000 lumens with die-cast adjustable gimbal to aim the light source in desired direction.
Input Voltage: 120V
Socket: Medium base socket adapter included
Color Temperatures: 2700K, 3000K, 3500K, 4000K, Comfort Dim (warm dimming)
Lumens / Wattage: 1000lm (800lm with Comfort Dim) / 12W
Optics Included: Spot, Narrow Flood, Flood (field changeable)
Compatible Housing:
- NFBIC-4LMRATA = Fire Rated LED Housing
- NFBIC-427LMRATA = Shallow Fire Rated LED Housing
- NFBIC-4INCATA = Fire Rated Line Voltage Housing
- NFJB-R4 = Fire-Rated Junction Box Housing
- NSIC-4LMRAT = Max. Adjustability LED Dedicated ICAT Housing
- NHIC-4LMRAT = IC Air-Tight LED Housing
- NHIC-427LMRAT = Shallow IC Air-Tight LED Housing
- NSIC-401QAT = IC Air-Tight Line Voltage Housing
- NS-401QAT = Non-IC Air-Tight Line Voltage Housing
- NHIC-4G24AT = IC Air-Tight GU24 Housing
- NHRIC-4LMRAT = IC Air-Tight LED Remodel Housing
- NHRIC-427LMRAT = Shallow IC Air-Tight LED Remodel Housing
- NSRIC-404QAT = IC Air-Tight Line Voltage Housing
- NSR-404QAT = Non-IC Air-Tight Line Voltage Housing
