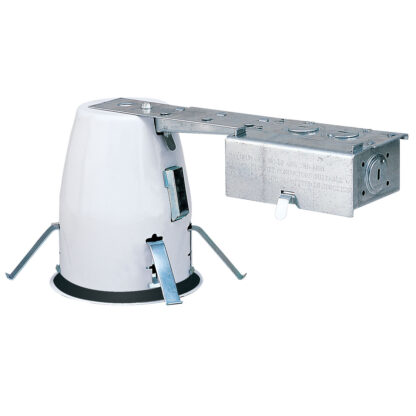

NSR-404QAT
4" Non-IC Air-Tight Line Voltage Remodel Housing
4″ recessed housings deliver ultra-high design quality in any application with minimal apertures ideal for R/PAR20, PAR16 designer light sources. Available in both standard and energy savings airtight configurations, Nora’s 4″ remodel housings install into existing drywall or wood ceilings with no above access and accept a wide variety of high quality, attractive trims.
Minimum Clearances: Non-IC housings require minimum clearances of 3″ from thermal insulation and 1/2″ from adjacent building components
Socket Plate: Socket plate adjusts inside housing and can be removed in the field to convert to a floating socket
Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience.
Maximum Wattage: 50W (can be labeled for lower wattages)
Downloads
Additional information
| Light Source | |
|---|---|
| Aperture Size | |
| Construction Type |
