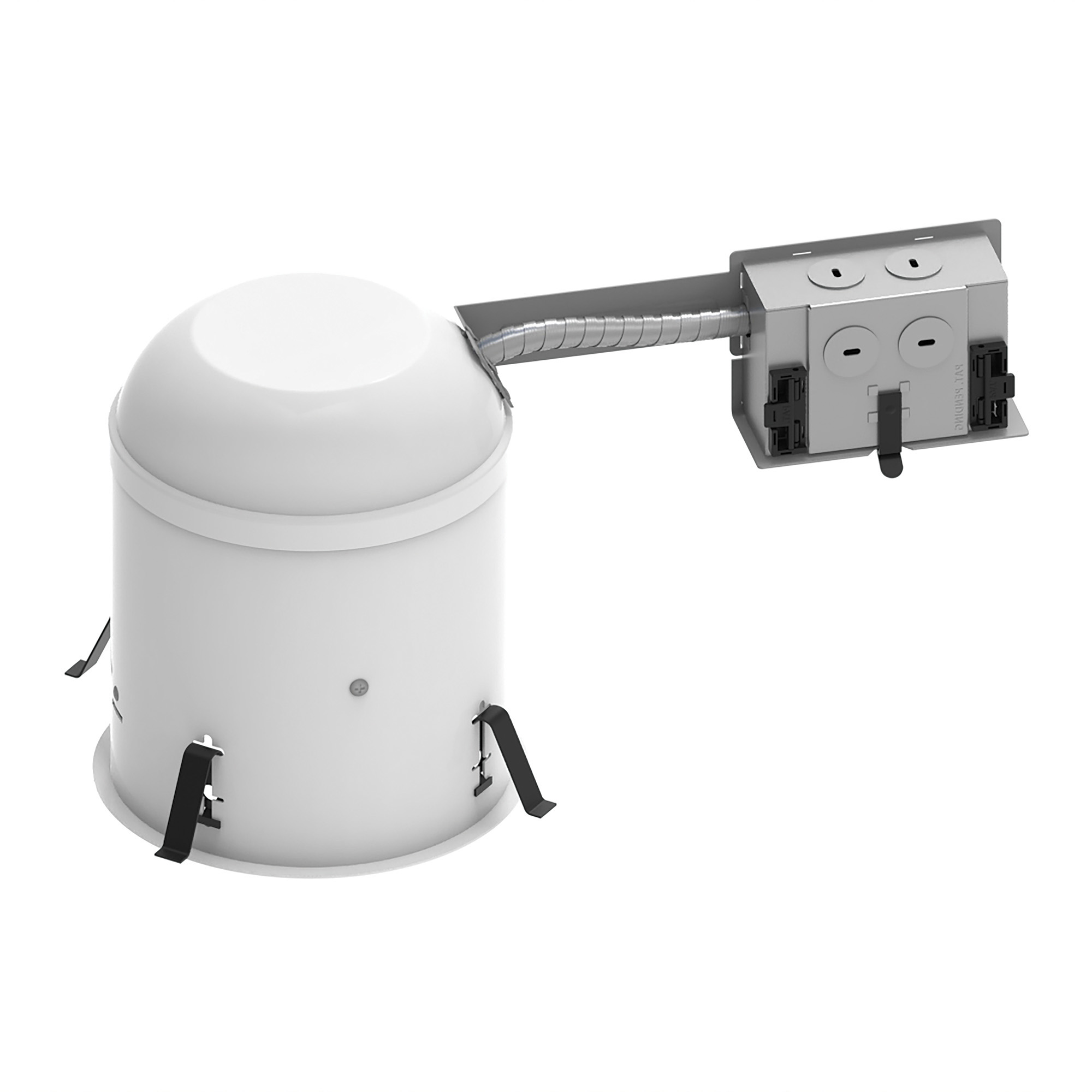

NHR-26Q

6" Non-IC Line Voltage Remodel Housing

Universal remodel housing is the base standard for incandescent recessed fixtures. The remodel housing installs into existing drywall or wood ceilings with no above access required. Designed for non-IC applications, it offers the widest range and variety of high quality, attractive finishing trims for lamps ranging from simple A-Type to larger PAR sources.

Minimum Clearances: Non-IC housings require minimum clearances of 3″ from thermal insulation and 1/2″ from adjacent building components

Socket Plate: Socket plate adjusts inside housing and can be removed in the field to convert to a floating socket

Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience.

Maximum Wattage: 150W (actual wattage varies with trim)

Downloads

Downloads

• Specification Sheet

• Instruction Sheet

Additional information

Aperture Size

6"

Light Source

Line Voltage

Construction Type

Remodel, Non-IC
