5" or 6" Onyx, Round LED Reflector

** While Supplies Last, replacement items: NOXAC-5631 or NOXTW-5631 **

Onyx Retrofit Series is suitable for use with most 5″ and 6″ recessed housings. Die-cast aluminum construction provides clean sharp edges. Deep regressed optics and round aperture delivers even and glare-free illumination. Available in multiple color temperatures and 90+ CRI.


  • 750 or 1200 lumens
  • 3500K, 4000K or 5000K @ 90+ CRI
  • Integral dimmable driver
  • Recessed mount into 5″/6″ housing. Includes medium base socket adapter for easy retrofitting in 5″/6″ recessed housings.
  • Quick connector is compatible with Nora NHIC -5LMRAT / NHIC-6LMRAT and NHRIC-5LMRAT / NHRIC-6LMRAT dedicated LED housings. Required by some codes in recessed can applications or to meet energy rebate program requirements.

Finishes: Black Reflector / Black Flange or White Reflector / White Flange

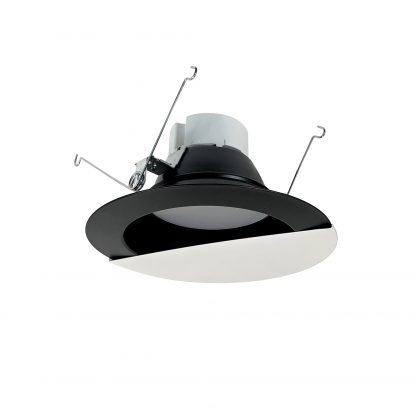

NOX-56EYELID: 5″/6″ Round Eyelid for Onyx

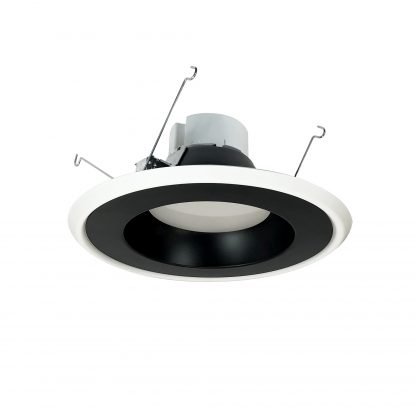

NOX-56OR-W: 5″/6″ Round Oversize Ring for Onyx
NRA-212SM: GU24 Socket Adapter



• Specification Sheet

• IES File

• Instruction Sheet

Additional information

Light Source


Lumen Output

0-900lm, 1000-1900lm

Aperture Size

5", 6"



Construction Type

Retrofit, Shallow


ENERGY STAR certified, Wet Location

Color Temperature

Dedicated CCT
