NQZ2-61TWTW

6″ Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation.

FEATURES

• Can-less installation (No frame-in or housing required)
• Easy installation for retrofit, remodel, or new construction applications
• Selectable Lumen switch allows for selectable lumen outputs from 1350lm to 2200lm
• Selectable CCT switch allows for selectable kelvin temperatures from 3000K / 3500K / 4000K
• Field changeable reflector allows for easy customization
• Optional emergency backup
• 5-year limited warranty
• ENERGY STAR certified
• Certified to the high efficacy requirements of California Title 24 JA8-2022
• cETLus Listed for Wet Locations

Input Voltage: 120-277VAC

Rating: IC

Lumens / Wattage: Selectable Lumens (1350lm / 12W; 1850lm / 16W; 2200lm / 20W)

Color Temperature: Selectable CCT (3000K / 3500K / 4000K)

Dimming: 0-10V

Finish: Matte Powder White

Listing: cETLus Listed for Wet Locations

Warranty: Five Years

Accessories:

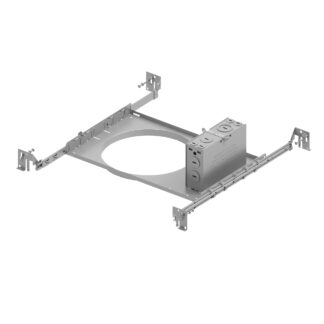

NQZ-6R-F: New Construction Frame-In with Collar
NQZ-61REFL: Reflector Insert (Specular Clear, Diffused or Haze)
NEPK-20LEDUNV: 20W Remote Emergency Driver
