NYLM-3SC

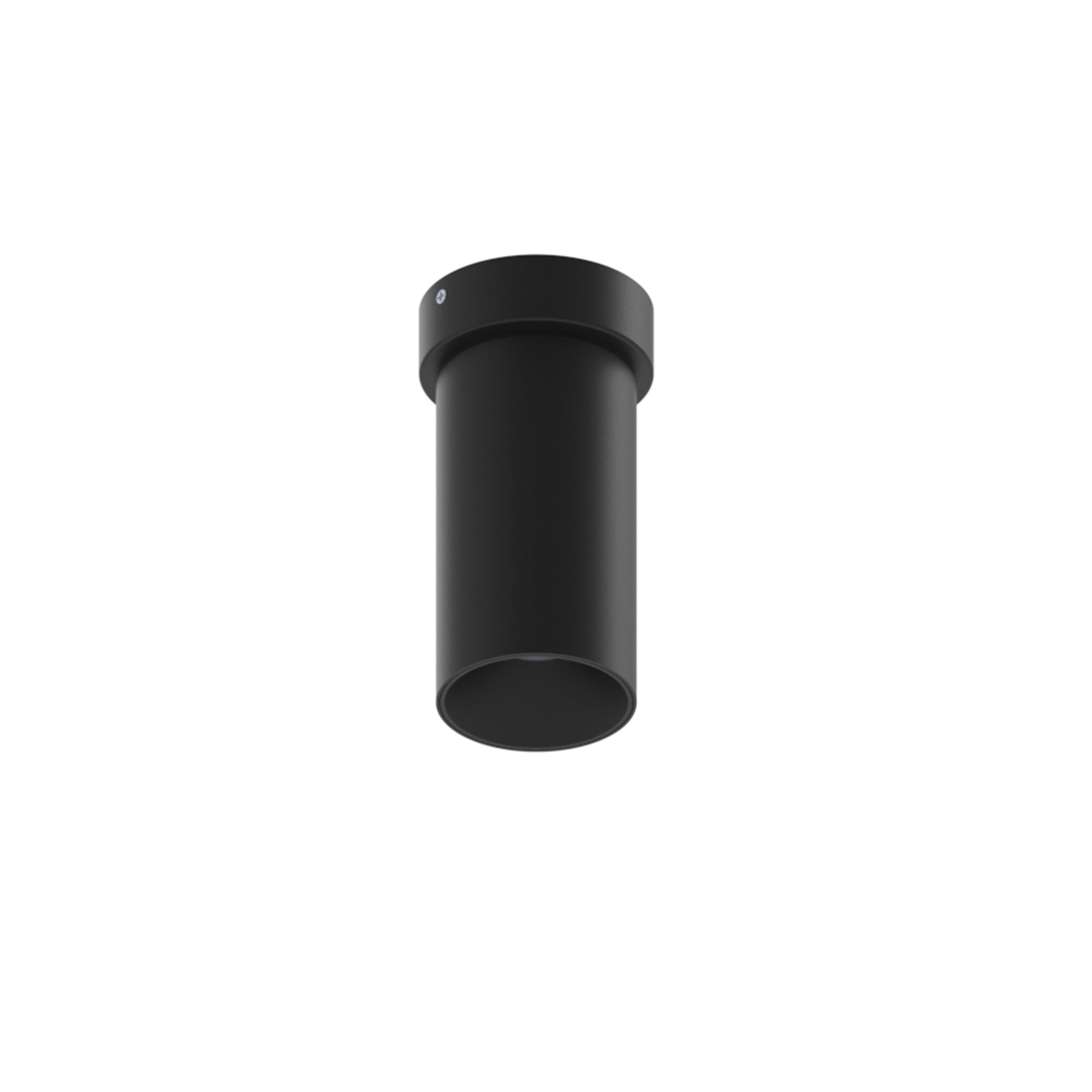

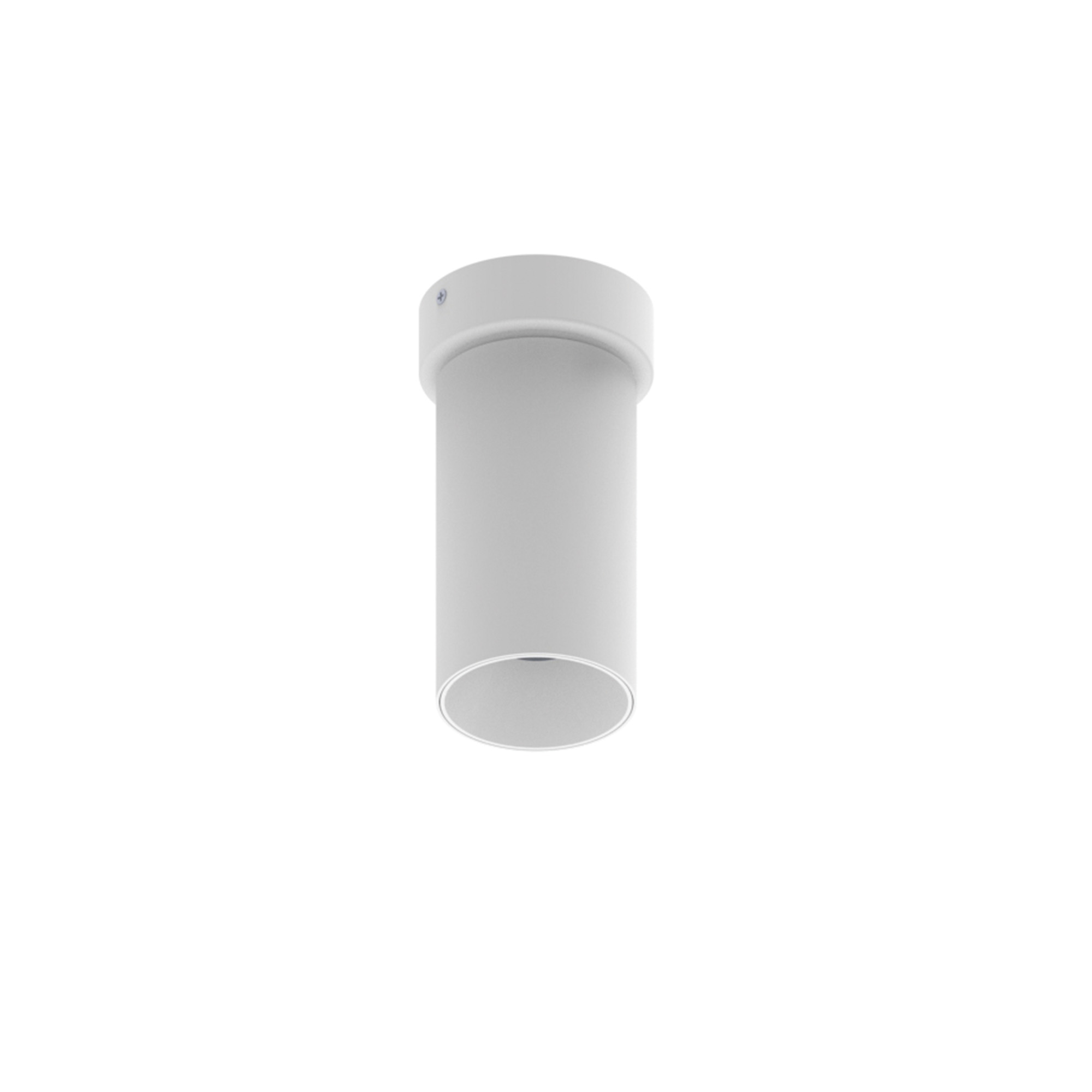

3" iLENE Mini Cylinder LED Surface Mount

The iLENE Mini Cylinder Surface Mount feature 3 sizes and outputs. Using Cree COB technology, the iLENE produces 90+ CRI of clean crisp light. The optics are deep set for excellent visual comfort. Each iLENE includes 3 field changeable reflectors for spot, narrow flood and flood beam spreads. The canopy driver allows for cool operation and optional driver and dimming options. Specify 2700K, 3000K, 3500K or 4000K kelvin temperature to meet your application needs. The die-cast aluminum cylinders are available in Black, Silver and White finishes.

FEATURES

  • Architectural die-cast aluminum construction and style
  • Cree COB Technology
  • Deep set optics
  • 90+ CRI
  • 2700K/3000K/3500K/4000K/ Comfort Dim (3100K-2000K)
  • Dimmable (Triac and 0-10V)
  • 120V and 277V
  • Black, Silver and White Finishes (Reflectors match finish)
  • Spot, Narrow Flood and Flood field changeable optics

Downloads

Downloads

• Specification Sheet

• Sales Sheet

• IES File

Additional information

Aperture Size

3"

Light Source

LED, Comfort Dim

Lumen Output

1000-1900lm

Finish

Black, Silver, White
