NL-301

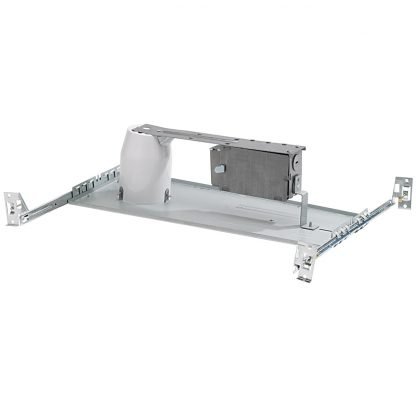

3" Air-Tight Low Voltage New Construction Housing

Nora Lighting’s 3″ low voltage housing provides soft, brilliant JC or crisp, defined MR16 quartz halogen illumination to any application. Airtight option offers energy savings by reducing the flow of air through the ceiling. A wide variety of attractive trims provide beautiful decorative enhancements to any ceiling.

Transformer:
Input: 120V
Type: Available in Electronic or Magnetic
Output: 12V 50W

Air Tight (AT): Available with air-tight housings that include a pre-installed gasket to restrict airflow from room into ceiling plenum (See specification)

Minimum Clearances: Non-IC housing requires minimum clearances of 3″ from thermal insulation and 1/2″ from adjacent building components

Ceiling Thickness: Housing accepts 5/8″ ceiling thickness only.

Lamp Adjustment: Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment. Trims for JC sockets have sockets preset for optimum angle and light output.

UV/Shatter Guard Shield: All low voltage trims include a tempered UV/shatter shield.

Dimming: Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer

Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ with captive nails

Junction Box: Contains one 3/4″, two 1/2″ knockouts and four Romex® pryouts with strain relief

Wattage: 20W-50W (actual wattage varies with trim)

Lamp: 12V MR16 or Bi-Pin GY6.35. Approved for use Soraa LED lamps with electronic transformer.

Dimensions:
Length: 16-1/4″
Width: 6-3/8″
Depth: 4-1/2″
Ceiling Opening: 3.17″

Listing:
cULus Listed for Damp Location w/ Feed Through
cULus Wet Location (Only with designated trims)
Washington State Approved
Meets or exceeds ASTM-283 Air-Tight

Downloads

Category:

Downloads

• Specification Sheet

Additional information

Light Source

Low Voltage
