NLOPAC-R8T24

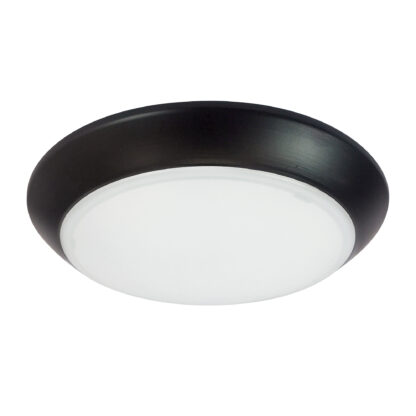

8" T24 AC Opal - LED Surface Mount, 2150lm

The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cULus listed for wet locations. T24 series can be used to comply with 2019 Title 24 – part 6 High Efficacy LED light source requirements.

Features:

  • 4″, 6″ and 8″ sizes
  • AC LED (No Driver)
  • Dimmable
  • Mount on standard 4″ junction box
  • ENERGY STAR certified
  • Suitable for use in closets when installed in accordance to NEC® Section 410.16 (A)(1) and 410.16 (C)(1)
  • Certified to the high efficacy requirements of California Title 24 JA8-2022

Lumens / Wattage: Up to 2150lm / 32W

Color Temperature: 2700K, 3000K, 4000K or 5000K

CRI: 90+

Finish: Bronze, Natural Metal or White

Optional Accessories:
NLOPAC-56RECKIT-2 = Retrofit Kit for mounting on 5″ or 6″ recessed housings

Categories: ,
• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

Additional information

Family

Opal

Light Source

LED

Aperture Size

8"

Finish

Bronze, Natural Metal, White

Construction Type

Retrofit, New Construction, Remodel

Options

Title 24, ENERGY STAR certified, Wet Location

Application

Downlight

Mounting Type

Surface Mounted

Color Temperature

Dedicated CCT
