NPRLV-4RSL

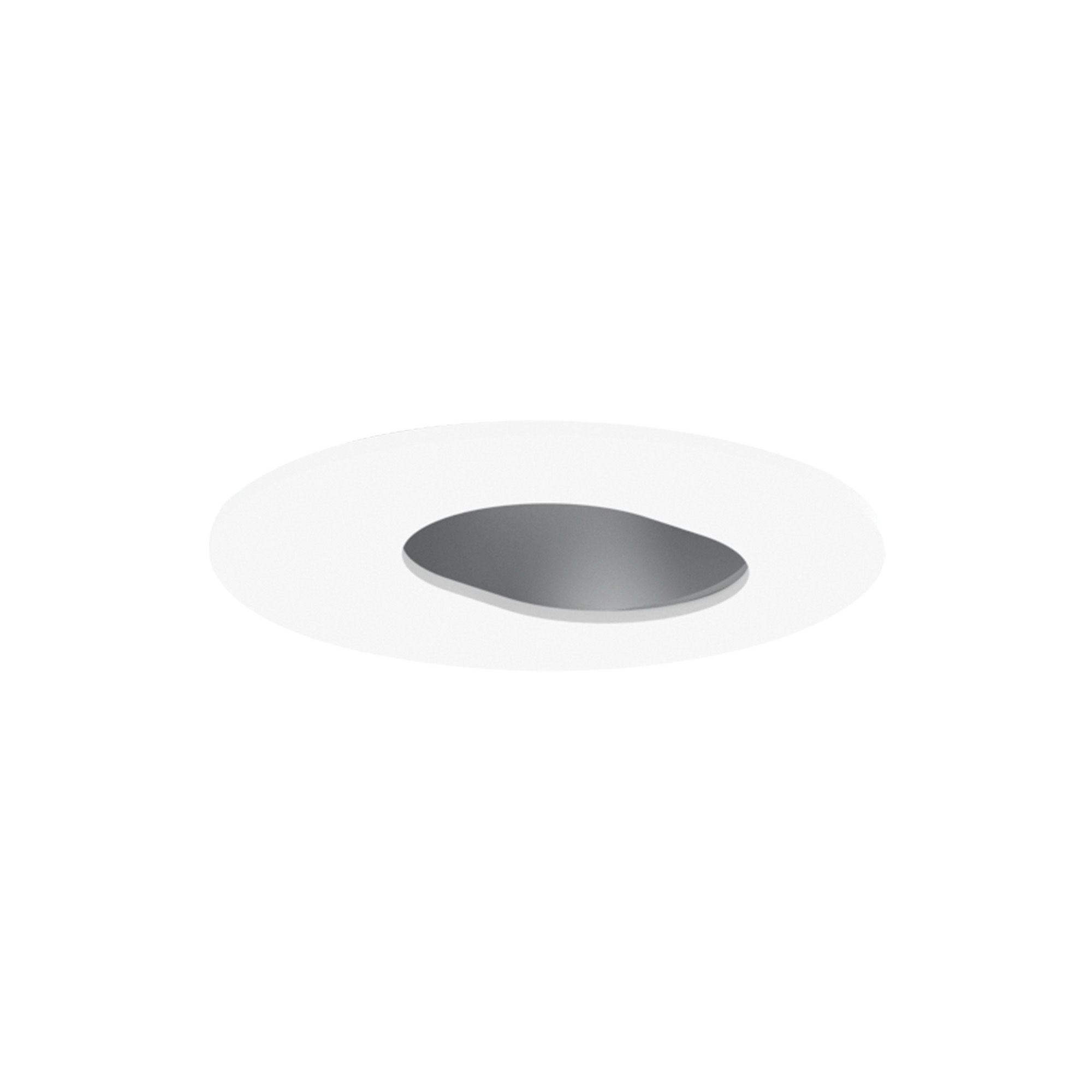

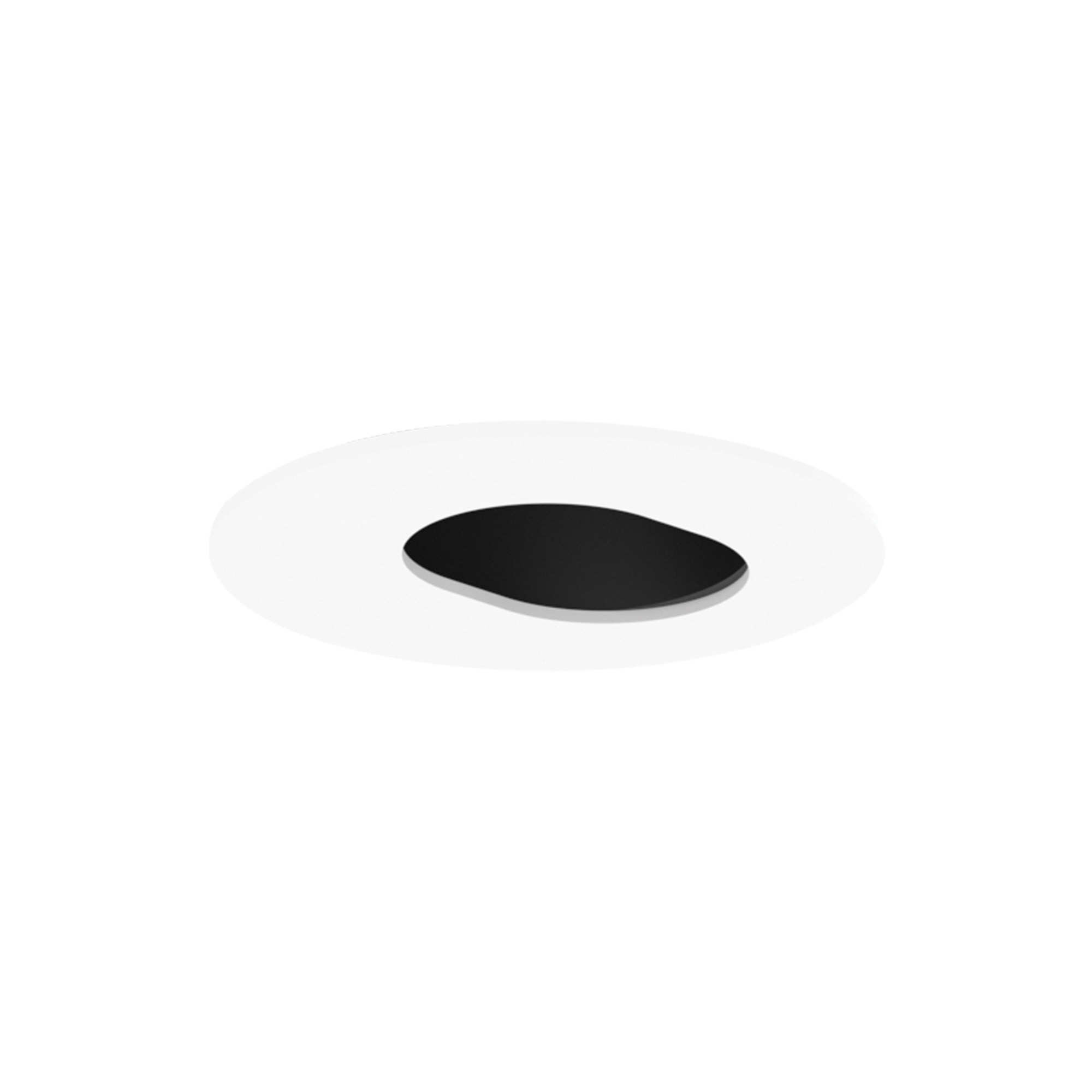

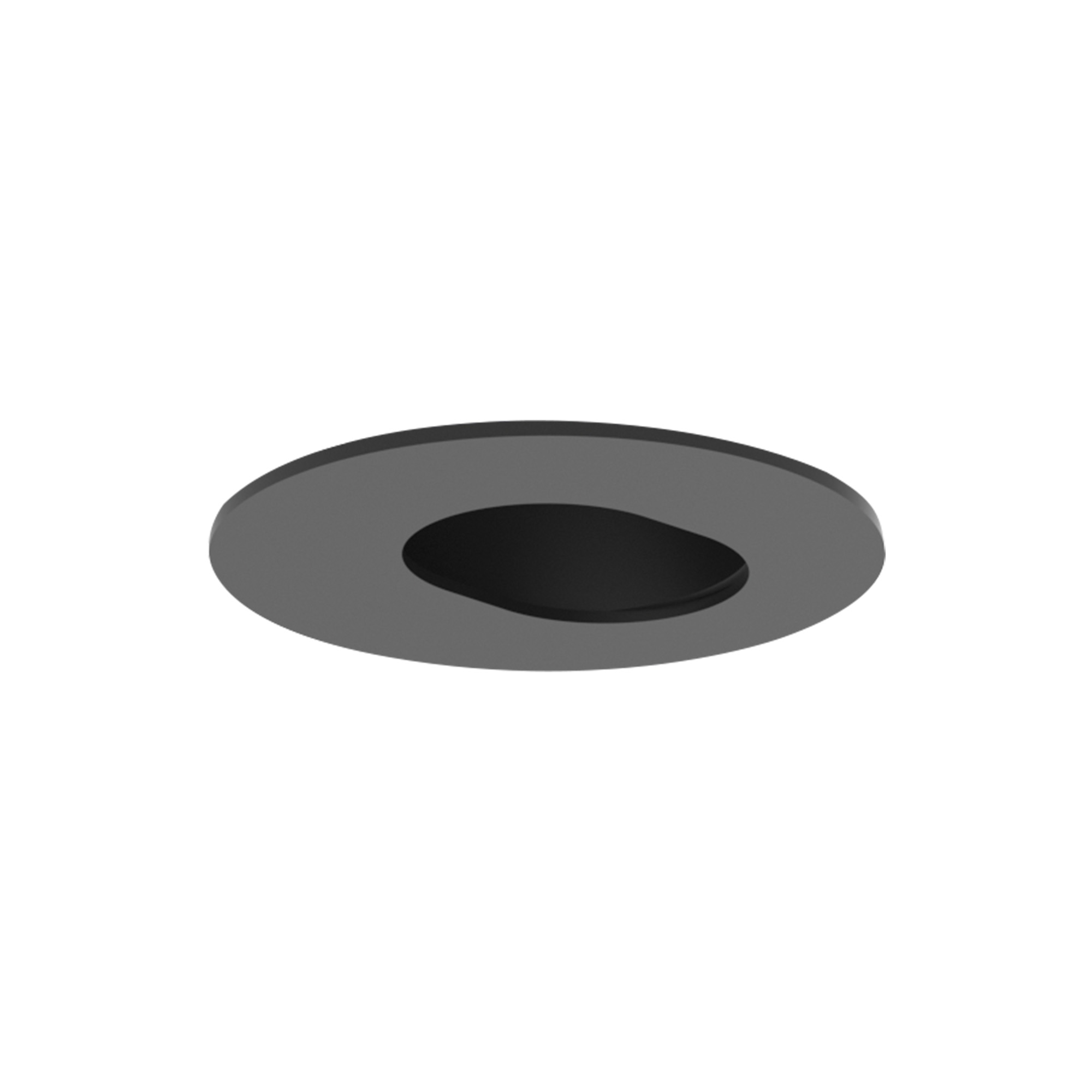

4" Pearl 12V LED Round Adjustable Slot Aperture Retrofit

4″ Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4″ retrofit luminaires deliver over 950 lumens with an adjustable slot aperture to focus the beam spread through 2-5/8″ x 2″ opening.

Input Voltage: 12V

Socket: GU5.3

Color Temperatures: 2700K, 3000K, 3500K, 4000K, Comfort Dim (warm dimming)

Lumens / Wattage: 950lm (600lm with Comfort Dim) / 11W

Optics Included: Spot, Narrow Flood, Flood (field changeable)

Compatible Housing:

  • NLIC-401 = IC Air-Tight Double Wall New Construction
  • NL-401 = Non-IC New Construction
  • NLR-404 = Non-IC Remodel
• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

• Brochure

Additional information

Family

Voltage

Light Source

,

Aperture Size

Application

,

Construction Type
