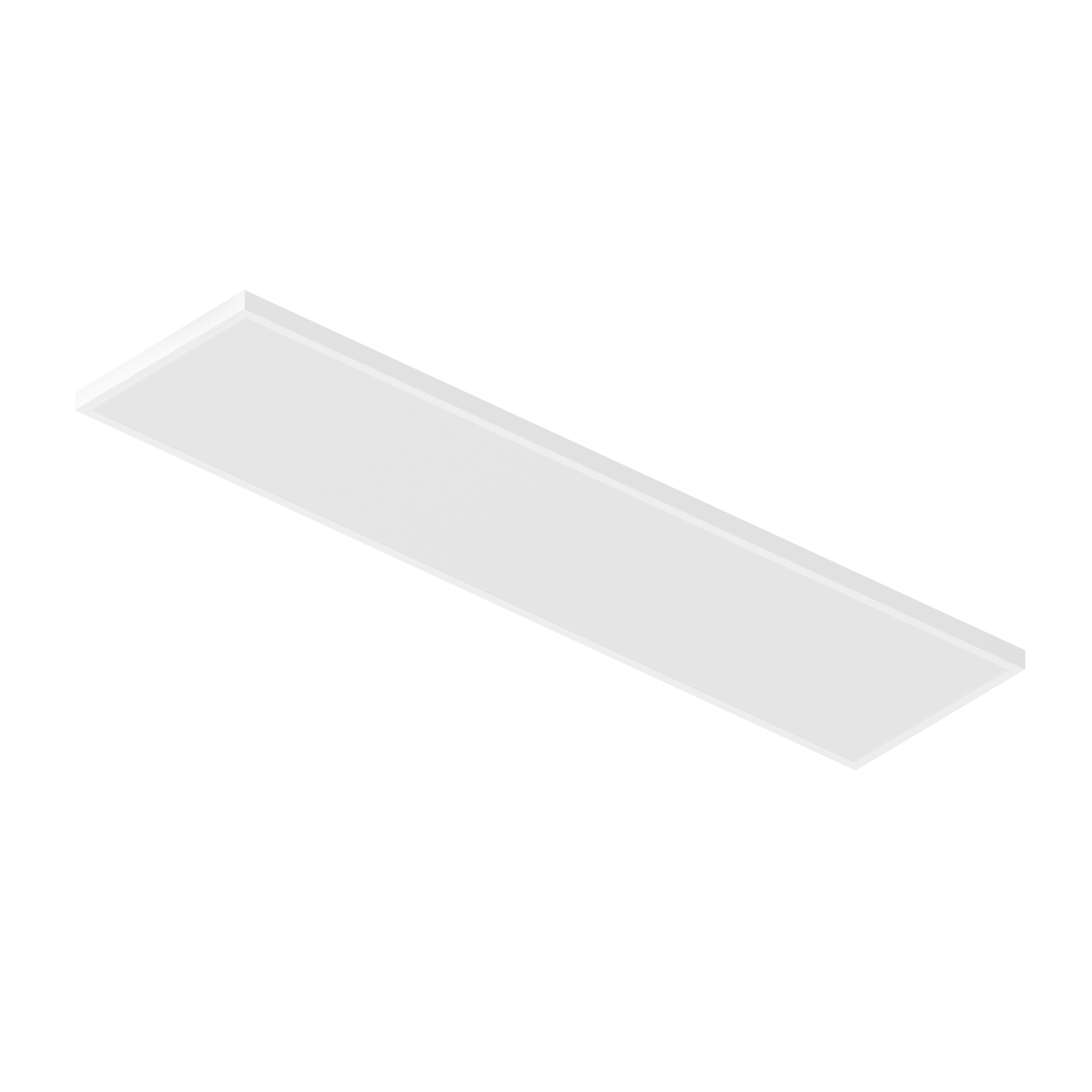

NSPDSW-14

Low-profile surface mount panels include edge-lit LED technology with a diffused polycarbonate lens. Each luminaire includes a Selectable CCT switch to adjust the color temperature. A smooth matte white finish provides general lighting for commercial and industrial applications. The luminaires are suitable for kitchens, corridors, bathrooms, offices, schools, retail, hospitals, and hospitality applications.

FEATURES
• Field Selectable Lumens
• Field Selectable CCT
• Easy “snap-in” installation and removal with hinged bracket
• Only 1″ thickness

Input Voltage: 120-277VAC

Lumens: Selectable Lumens (2400lm to 4550lm)

Wattage: Selectable Wattage (20W to 40W)

Color Temperature: Selectable CCT (2700K / 3000K / 3500K / 4000K / 5000K)

Dimming: Phase (Triac / ELV)

Finish: White

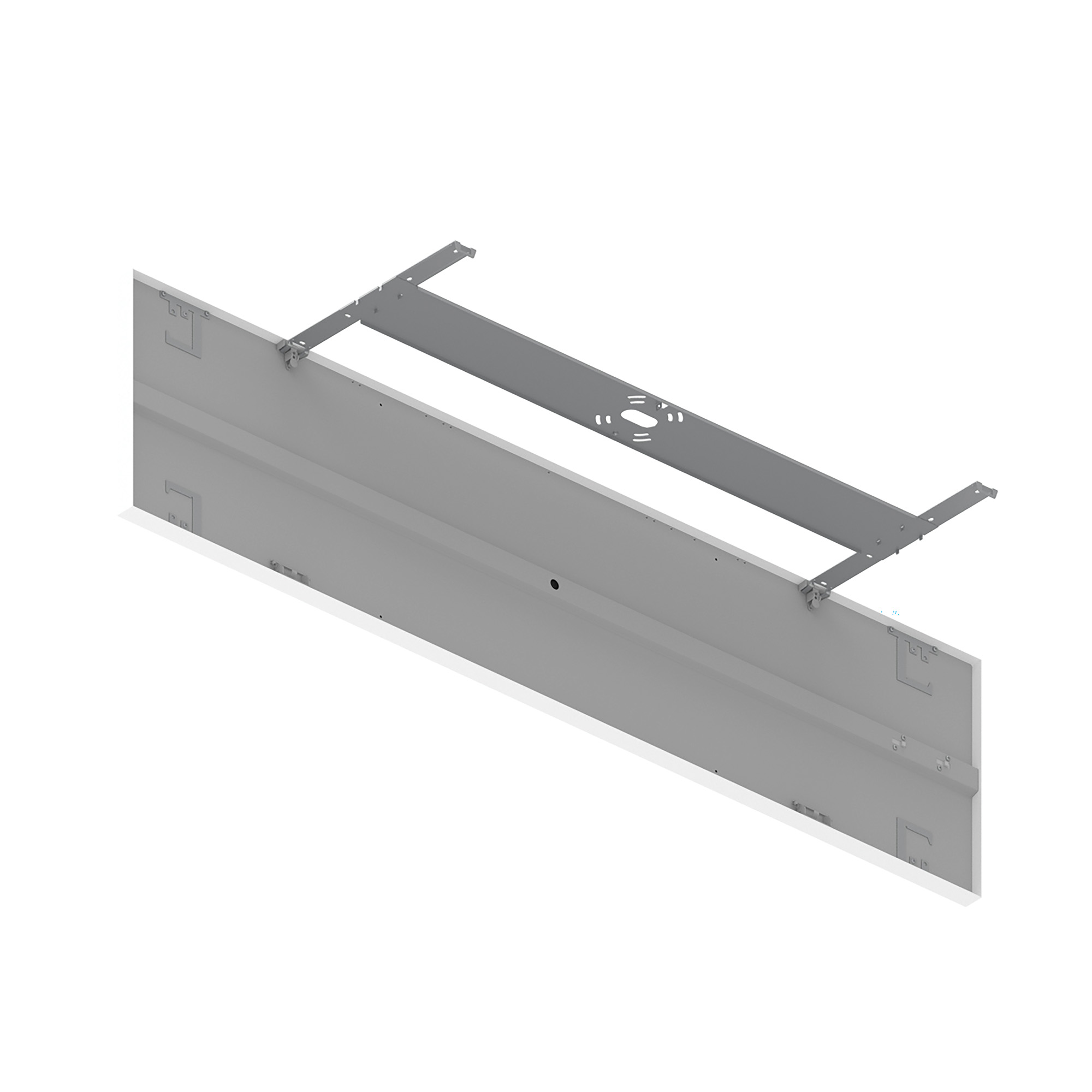

Mounting: Ceiling bracket included for installation over a junction box.

Remote Emergency:
NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV-JB: 23W Emergency LED Driver Kit with Remote Test Switch
