NUDTW-9832

32" Bravo FROST Tunable White LED Linear

Low-profile LED Bravo FROST Tunable White fixtures provide excellent and even illumination on all surfaces. At only 10 watts per foot, Bravo FROST TW produces an incredible 850 lumens per foot at a crisp sharp 90+ CRI. Each Bravo Frost TW contains it own driver allowing a 120V feed and longer single runs than low voltage systems. Each luminaire includes 90° adjustable brackets and integral CCT switch to change the color tempearture (3000K / 3500K / 4000K).

Input Voltage: 120V

Length: 32″

Lumens / Wattage: 850lm / 10W per foot

Color Temperature: Field Selectable (3000K / 3500K / 4000K)

Finish: White

Included with luminaire: (2) 90° Adjustable mounting brackets and (1) End-to-End connector

Accessories:

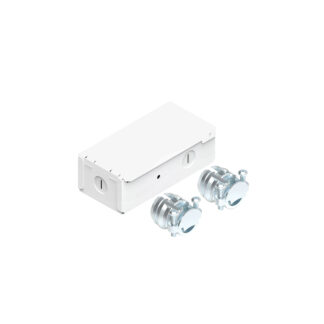

NUA-902W: Hardwire Junction Box
NUA-904W: 72″ Hardwire Connector
NUA-905W: 72″ Cord and Plug
NUA-903W: End-to-End Connector  (included with luminaire)
NUA-906W: 6″ Jumper Cable
NUA-912W: 12″ Jumper Cable
NUA-924W: 24″ Jumper Cable
NUA-972W: 72″ Jumper Cable
NUA-909W: 90° Adjustable Mounting Brackets (included with luminaire)

Downloads

• Specification Sheet

• Sales Sheet

• Instruction Sheet

Additional information

Light Source

LED

Family

Bravo FROST

Finish

White

Voltage

120V
