NYLD2-6P

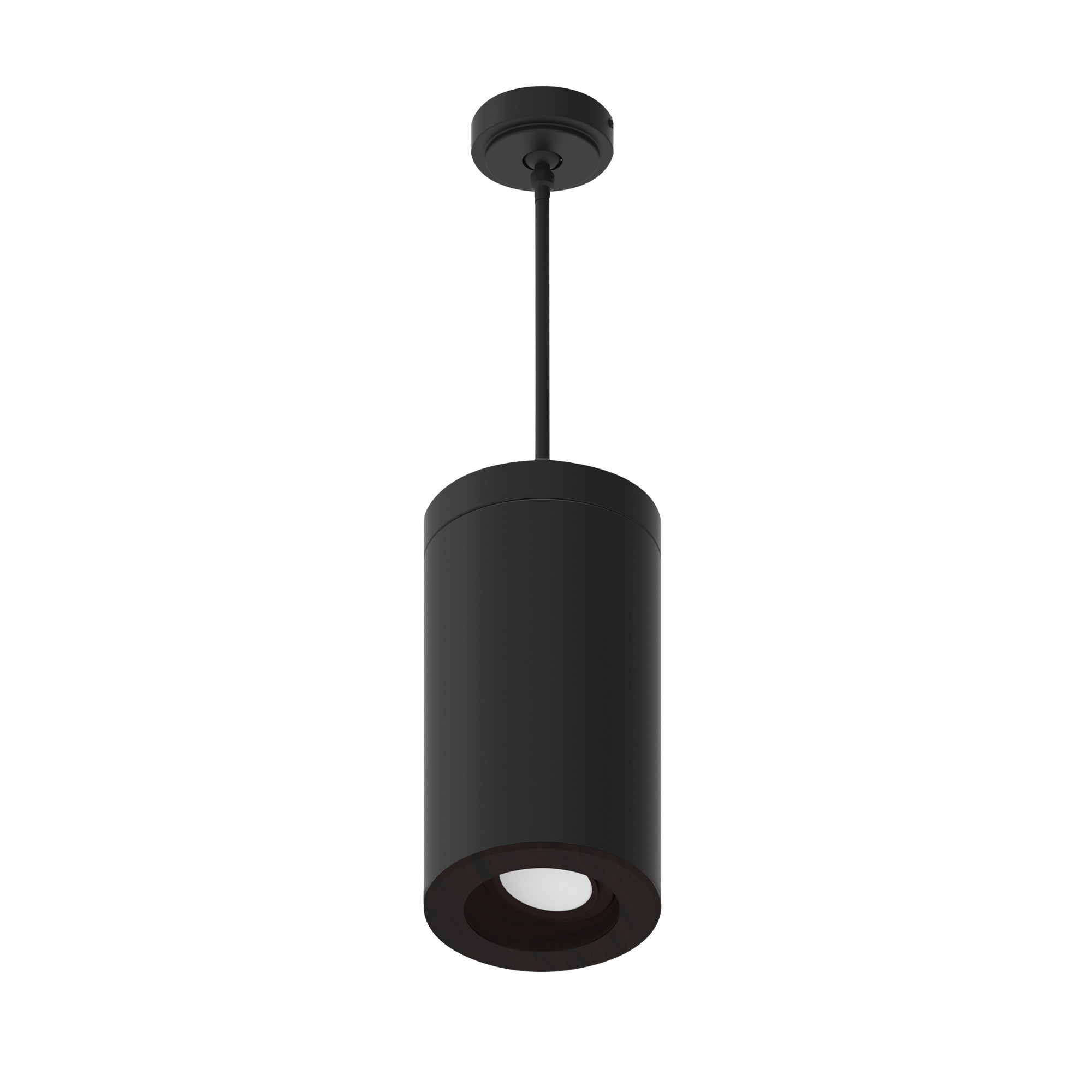

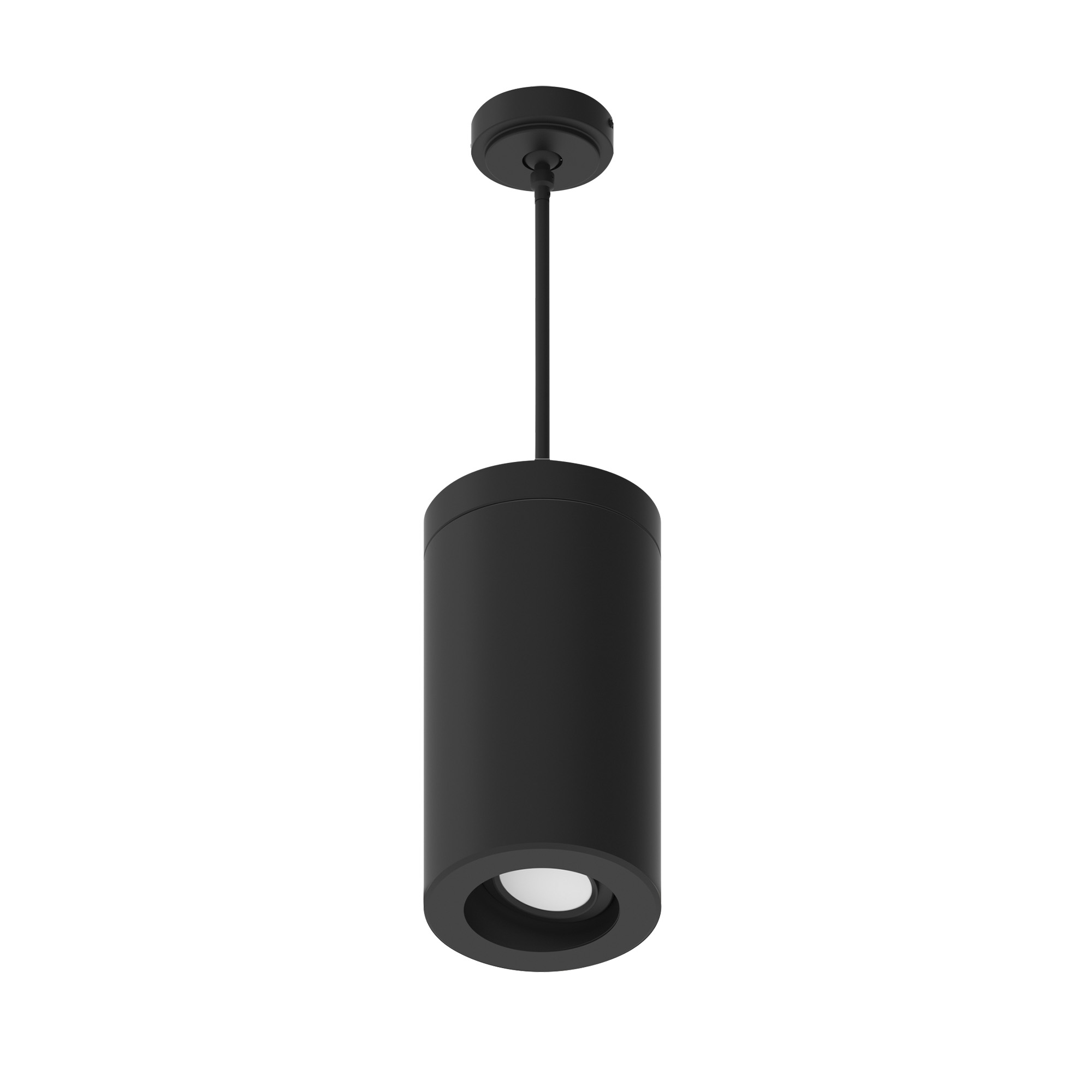

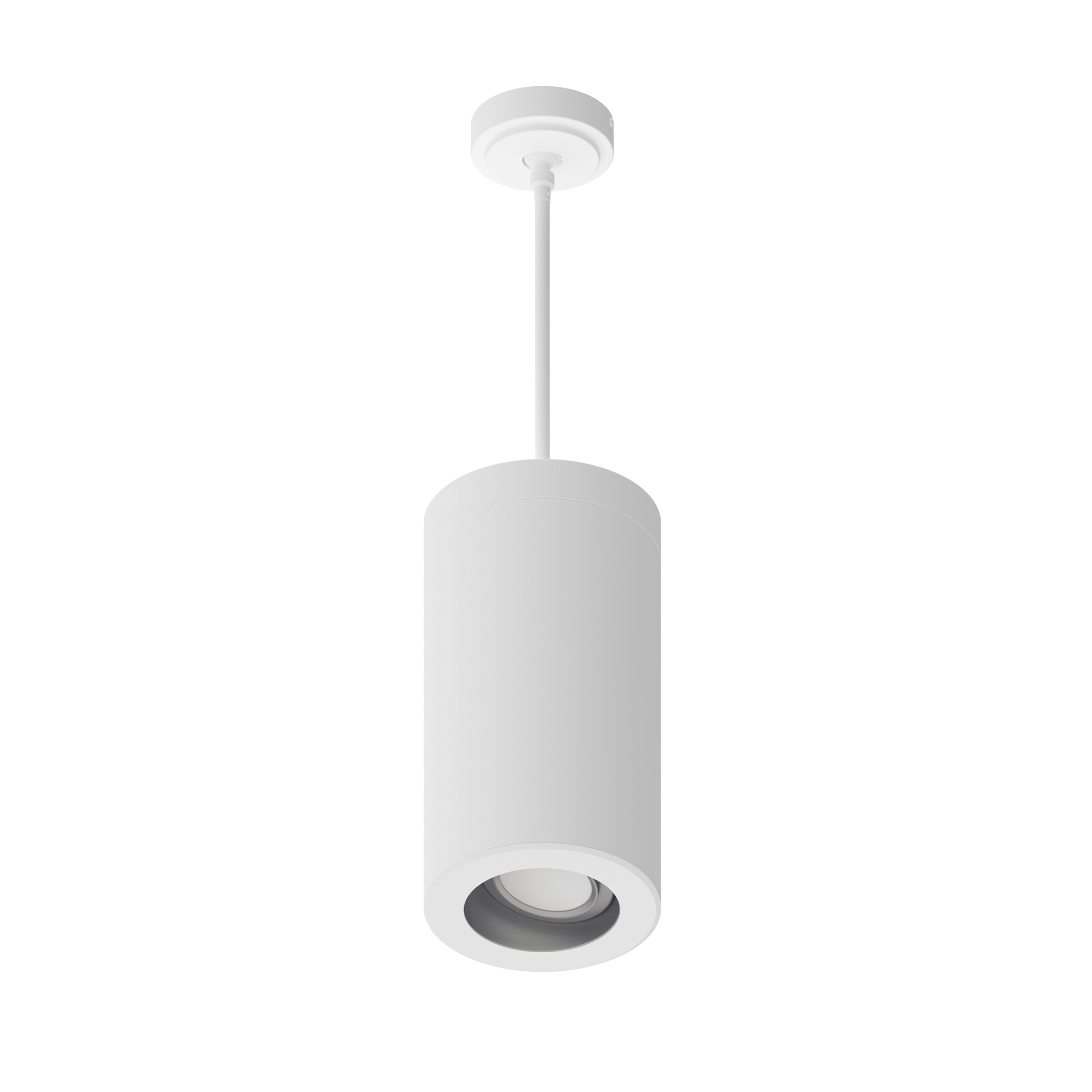

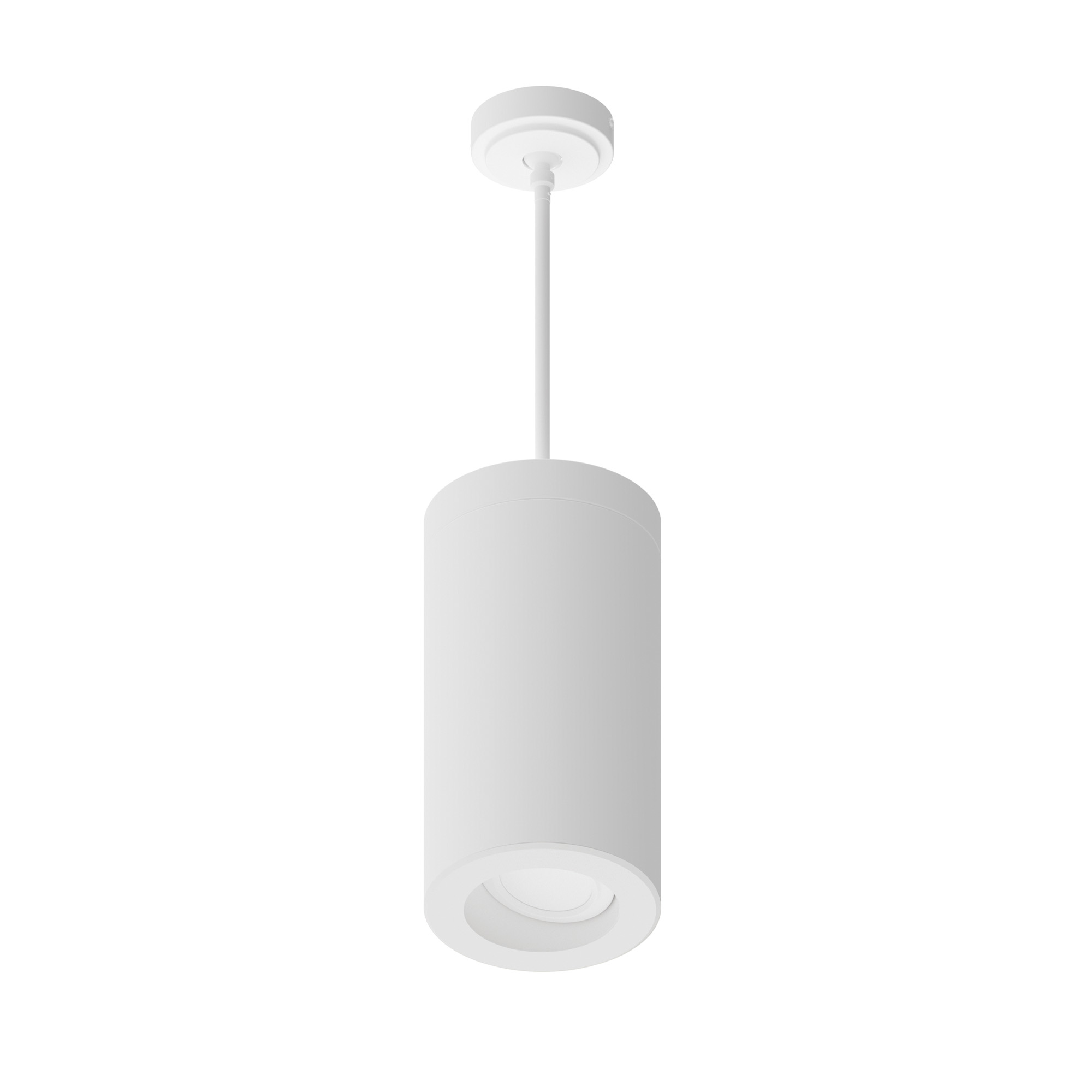

6" Cobalt Cylinder - Stem Mounted up to 1000lm

6″ Architectural grade LED cylinder featuring with deep set optics featuring a reflector or baffle cone for optimal visual comfort. Utilizing an array of LEDs, giving bright spectacular light output and low power consumption.

Features

  • 120V or 277V input
  • 750 or 1000 lumen LED packages
  • Also available in Surface, Cable or Wall mounted
  • Triac, ELV or 0-10V dimming options
  • 5-Year limited warranty
  • cULus listed for damp location with feed through
  • ENERGY STAR certified

Lumens: 750lm or 1000lm

Color Temperature: 2700K, 3000K, 3500K, 4000K or Comfort Dim (3100K to 1700K)

Mounting: Cylinder includes five threaded rods that can be customized up to 7′ and attached to matching canopy

Reflector Styles: Available with Baffle or Reflector styles in 10 finishes

Downloads

Categories: ,
• Photometric Layout

Downloads

• Specification Sheet

• IES File

• Instruction Sheet

Additional information

Aperture Size

6"

Light Source

LED

Mounting Type

Stem Mounted
