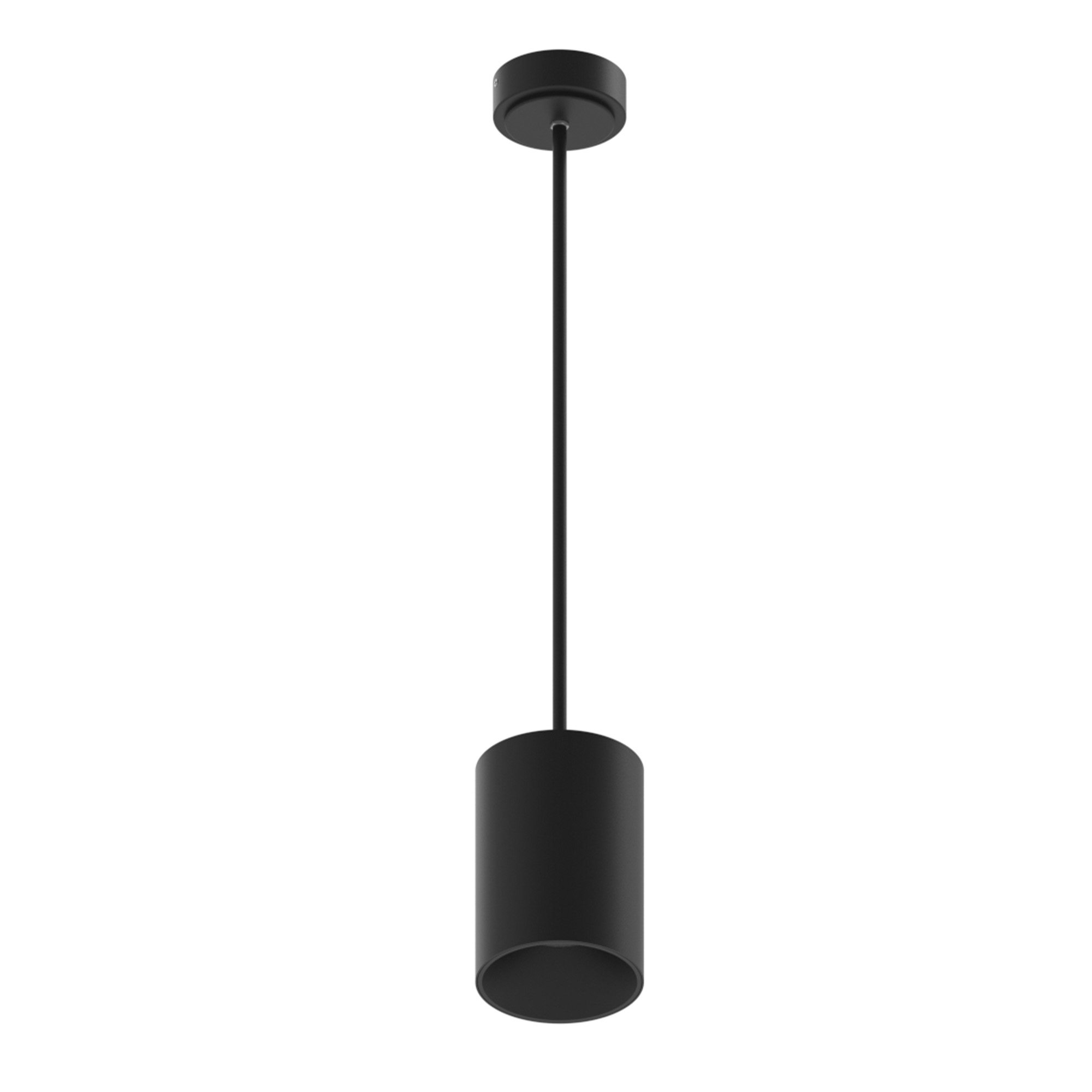

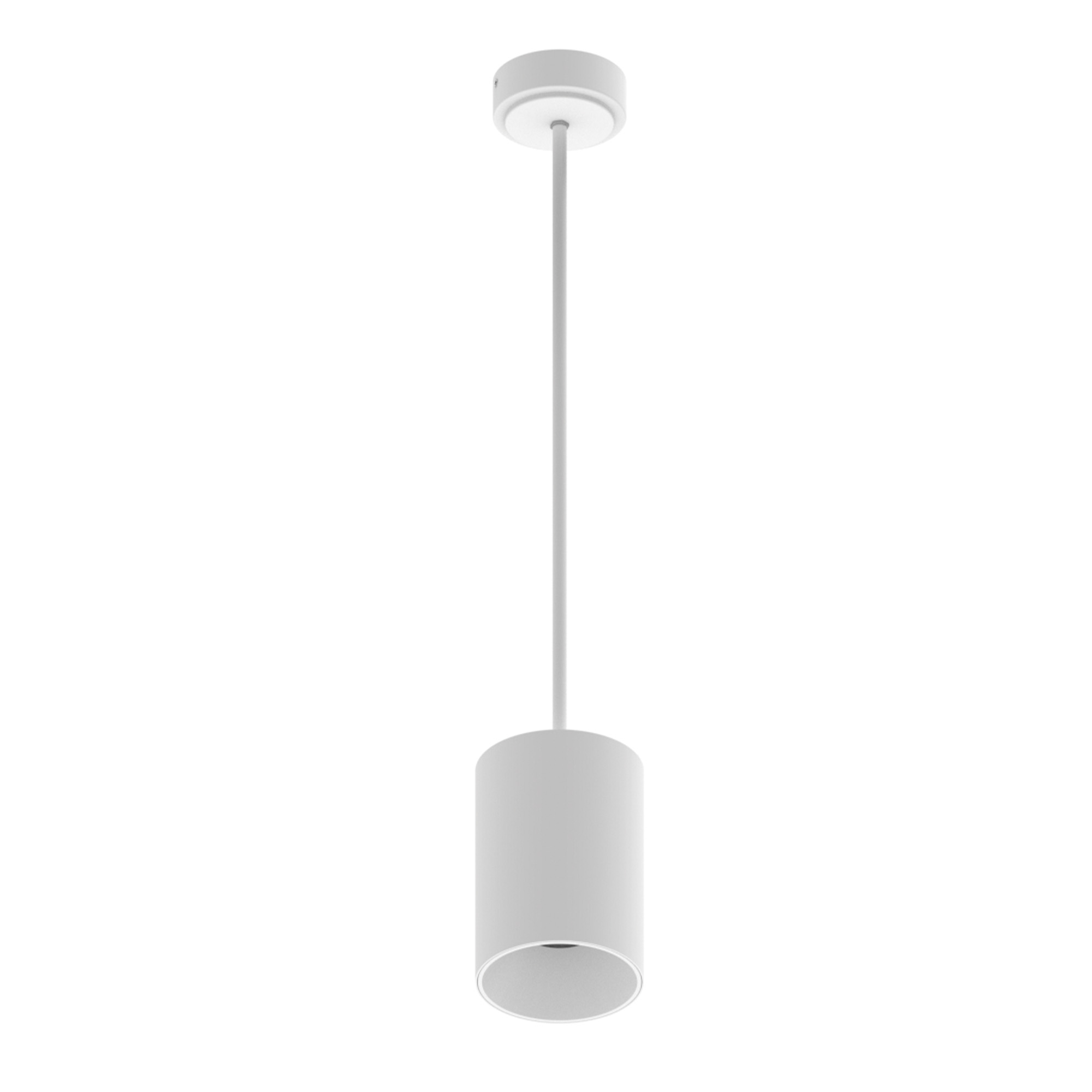

NYLM-5ST

5" iLENE LED Mini Cylinder - Stem Mounted, 2000lm / 40W

iLENE Mini Cylinders are available in three sizes and lumen outputs. Using Cree COB LED technology, each iLENE includes three field changeable optics for spot, narrow flood and flood beam spreads. The optics are deep set for excellent visual comfort. The canopy mounted driver allows for cool operation and optional driver and dimming options.

FEATURES

  • Architectural die-cast aluminum construction and style
  • Cree COB LED Technology
  • Deep set optics
  • Dimmable (Triac, ELV or 0-10V)
  • Certified to the high efficacy requirements of California Title 24 JA8-2019

Lumens / Wattage: 2000lm / 40W

CCT: 2700K, 3000K, 3500K, 4000K or Comfort Dim (3100K to 2000K)

Field Changeable Optics: Spot, Narrow Flood and Flood are included

Mounting: Stem mounted, must specify length in 12″ increments

Finishes: Black, Silver or White

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

Additional information

Aperture Size

5"

Light Source

LED, Comfort Dim

Lumen Output

1000-1900lm

Mounting Type

Stem Mounted
