Apollo
Introducing Apollo – a sleek, three-inch recessed lighting solution that combines cutting-edge COB LED technology with architectural-grade finishes and advanced TIR optics. Available in flanged and trimless options, Apollo is ideal for millwork applications, offering exceptional glare control and a range of versatile dimming protocols. Whether you’re illuminating residential or commercial spaces, Apollo ensures a seamless blend of style and performance, with a focus on precision and efficiency.
Dimmable down to 0.1%
Phase, 0-10V, Lutron, DALI, Casambi
Extruded Aluminum Heat Sink
with COB LED technology
Precise Aiming & Locking
361° Rotation • 45° Tilt
Reinforced Bar Hangers
with two locking positions
Field Changeable Collars
Accommodates ceiling
thickness from 0.5" to 2"
Mud Ring
Die-Cast Aluminum with
Knife Edge Appearance
Die-Cast Aluminum Trims
Flanged or Flangeless
(Trimless and Wood Ceiling)
Apollo 3″ Specification Grade Luminaires
· NEW Filter Media
· 3″ Round or Square Aperture
· Adjustable Mechanism (361° rotation / 45° tilt) without Glare
· Delivering 1000 to 3000 lumens
· IC or Non-IC Air-Tight Housing includes COB LED assembly
· Dedicated CCT (2700K, 3000K, 3500K, 4000K) or Comfort Dim (Warm Dim)
· COB LED Technology with TIR optics (10° Narrow Spot to 55° Flood)
· Phase, 0- 10V, Lutron, DALI, Casambi Dimming down to 0.1%
· Flanged and Trimless Millwork Installations
· 5-Year Limited Warranty
· ENERGY STAR certified
· Title 24 compliant
361° Horizontal Rotation
Tool-Free Locking Thumb Screw
45° Vertical Tilt
Precise Aiming & Locking Thumb Screw
Shallow Housing
4-1/8″ height designed for use in ceiling plenums with limited space.
Quiet ceiling appearance with 45° visual cut-off to LED Source.
Detachable Roof
Easy maintenance with above access ceiling.
Field Serviceable
Driver and LED are replaceable from below the ceiling.
One Housing for Various Ceiling Types
Drywall (Flanged or Trimless) & Wood/Stone/Tile (Flangeless)
Total Internal Reflection (TIR) Optics
Field Changeable (26° Spot to 55° Flood)
Fixed (10° to 15° Narrow Spot)
NEW 10° Narrow Spot now available!
Field Changeable Collars
Accommodates ceiling thickness from 0.5″ to 2″.

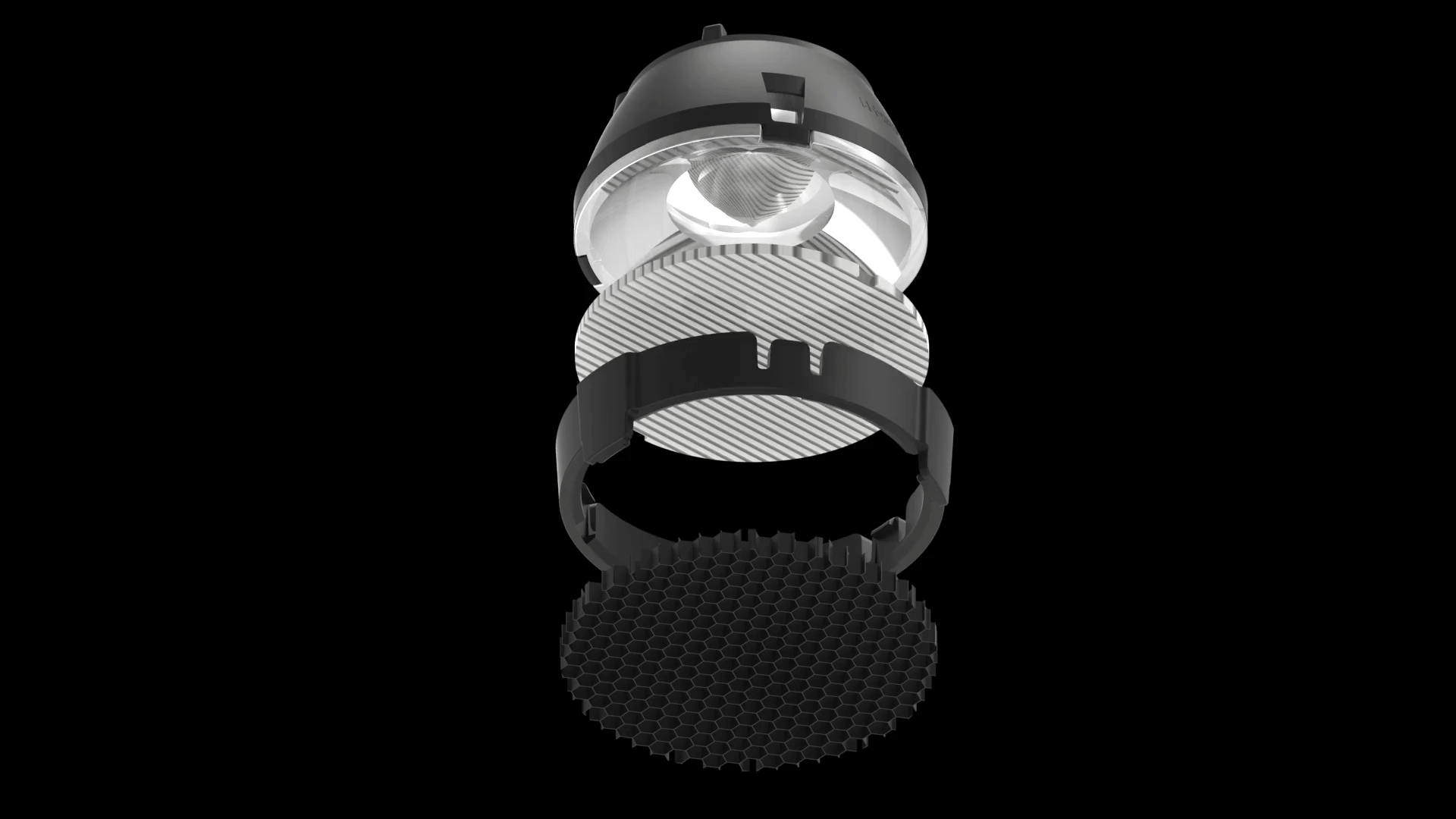

Filter Media
Wide range of filter accessories that provide greater control over appearance and diffusion.
Diffused
A diffused lens softens and evenly distributes light, reducing glare and creating a smooth, uniform illumination ideal for general or ambient lighting. Includes an accessory holder and up to 2000lm max.
Hex
A hex louver softens and evenly distributes light, reducing glare and creating a smooth, uniform illumination ideal for general or ambient lighting. Includes an accessory holder and up to 2000lm max.
Linear
A linear lens shapes light into an elongated beam pattern, providing smooth, even illumination ideal for wall washing or highlighting architectural lines. Includes an accessory holder and up to 2000lm max.
Solite
A solite lens features a micro-prismatic surface that minimizes glare while maintaining high light transmission, delivering crisp, uniform illumination with excellent visual comfort. Includes an accessory holder and up to 2000lm max.
Square
A square lens provides a clean, modern aesthetic while evenly distributing light, making it ideal for spaces that complement geometric or architectural designs. Includes an accessory holder and up to 2000lm max.
Wide
A wide lens spreads light over a broad area, delivering even, uniform illumination ideal for general lighting applications. Includes an accessory holder and up to 2000lm max.
Apollo Housing
Now available in Non-IC and Square apertures!
Dedicated Color Temperature
(Tunable coming soon!)
Delivering 800 to 3000 lumens
(2500lm – 3000lm now available!)
Knife Edge Appearance (Flangeless)
For use in millwork applications or with trimless mud plate.
Micro Flange
Precision crafted die-cast aluminum.
Three Trim Types
Downlight, Pinhole and Wall Wash (all trims are compatible with the adjustable LED mechanism)
3″ Pinhole
Architectural Grade Finishes
Die-cast aluminum trims are available in five finishes
