NEFLINTW-R6MPW

6" E-Series FLIN LED Downlight (27K/30K/35K/40K/50K), 1300 lumens

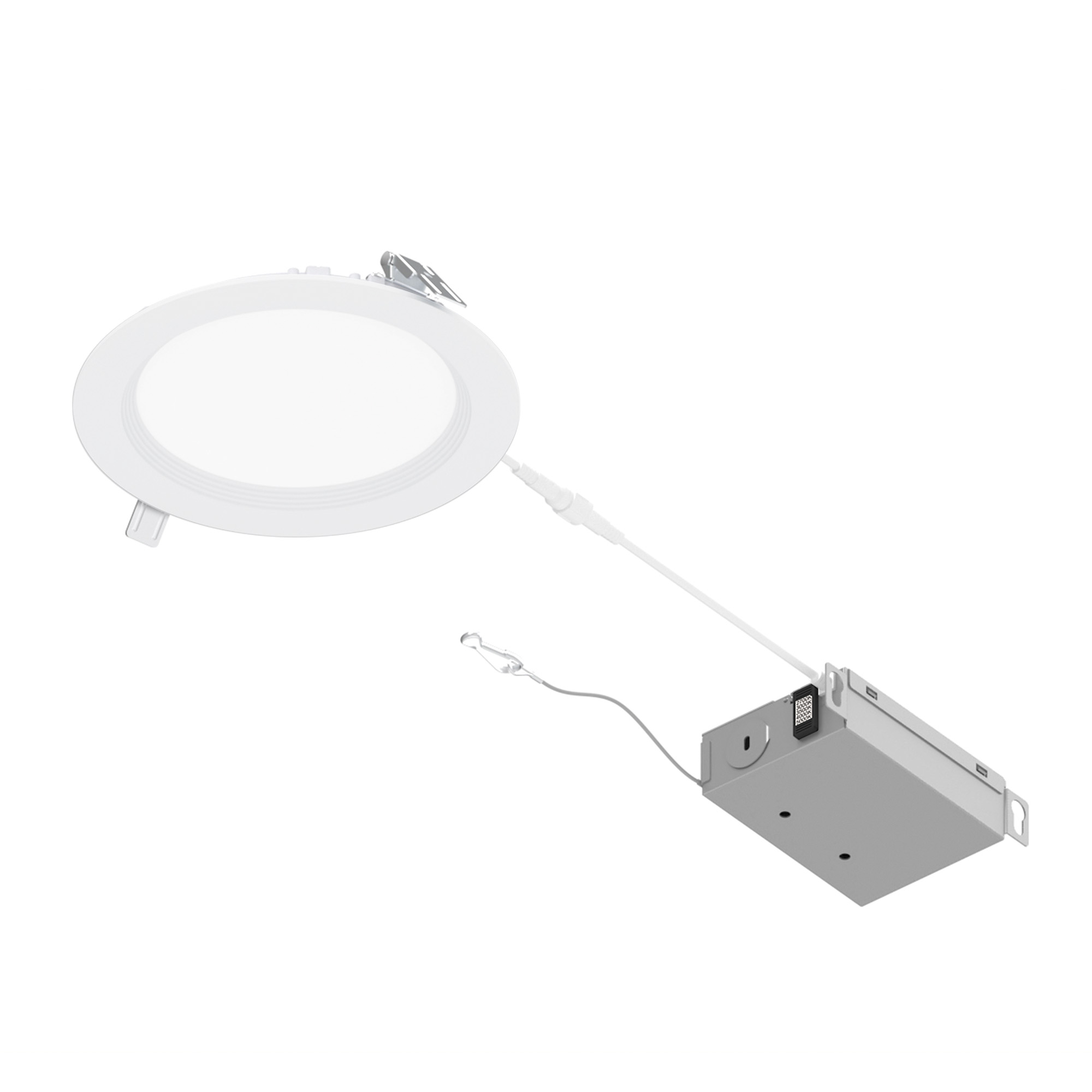

The E-Series FLIN is a thin recessed LED designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral tunable CCT switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.

Features

  • No housing required and includes pre-wired junction box
  • Quick disconnect allows for easy installation Junction box includes tunable color temperature switch
  • IC Air-Tight rated
  • Triac or ELV dimming
  • cETLus Listed for Wet locations
  • ENERGY STAR certified
  • Certified to the high efficacy requirements of California Title 24 JA8-2022

Lumens / Wattage: 1300lm / 13.5W

Color Temperature: Field Selectable CCT Switch (2700K / 3000K / 3500K / 4000K / 5000K)

Color Rendering Index: 90+ CRI

Finish: Matte Powder White

Accessories:
NF-R246: Universal New Construction Frame-In
NEFLINTW-EW-4: 4′ Quick Connect Extension Cable
NEFLINTW-EW-20: 20′ Quick Connect Extension Cable

Downloads

• Specification Sheet
• Sales Sheet
• IES File
• Instruction Sheet
Categories: ,
• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

Additional information

Family

FLIN
Light Source

LED
Aperture Size

6"
Application

Downlight
Construction Type

Canless, Shallow, New Construction, Remodel, Air-Tight IC
Options

Title 24, ENERGY STAR certified, Wet Location
Color Temperature

Selectable CCT
Dimming

Triac / ELV
