NPRLV-56RSLA

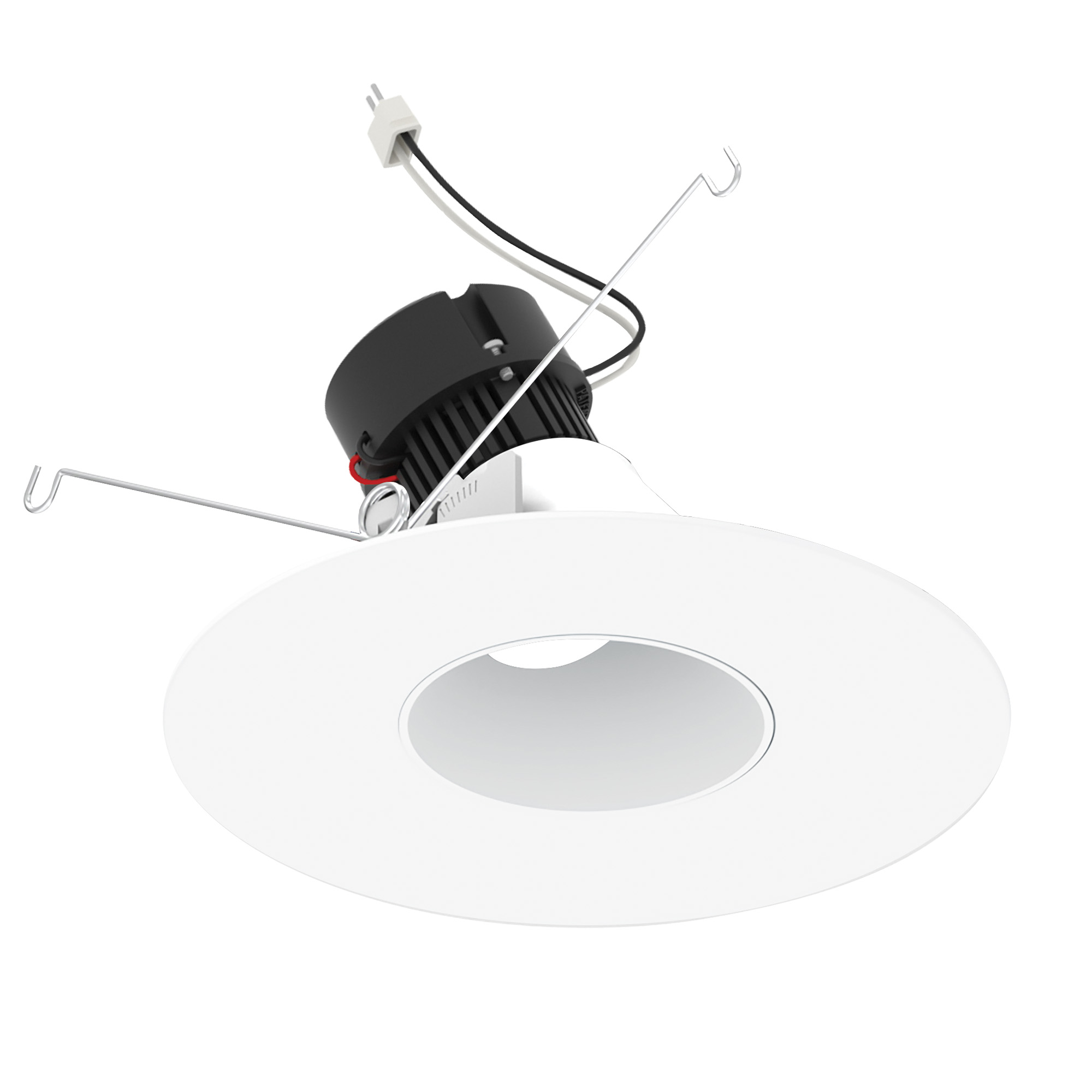

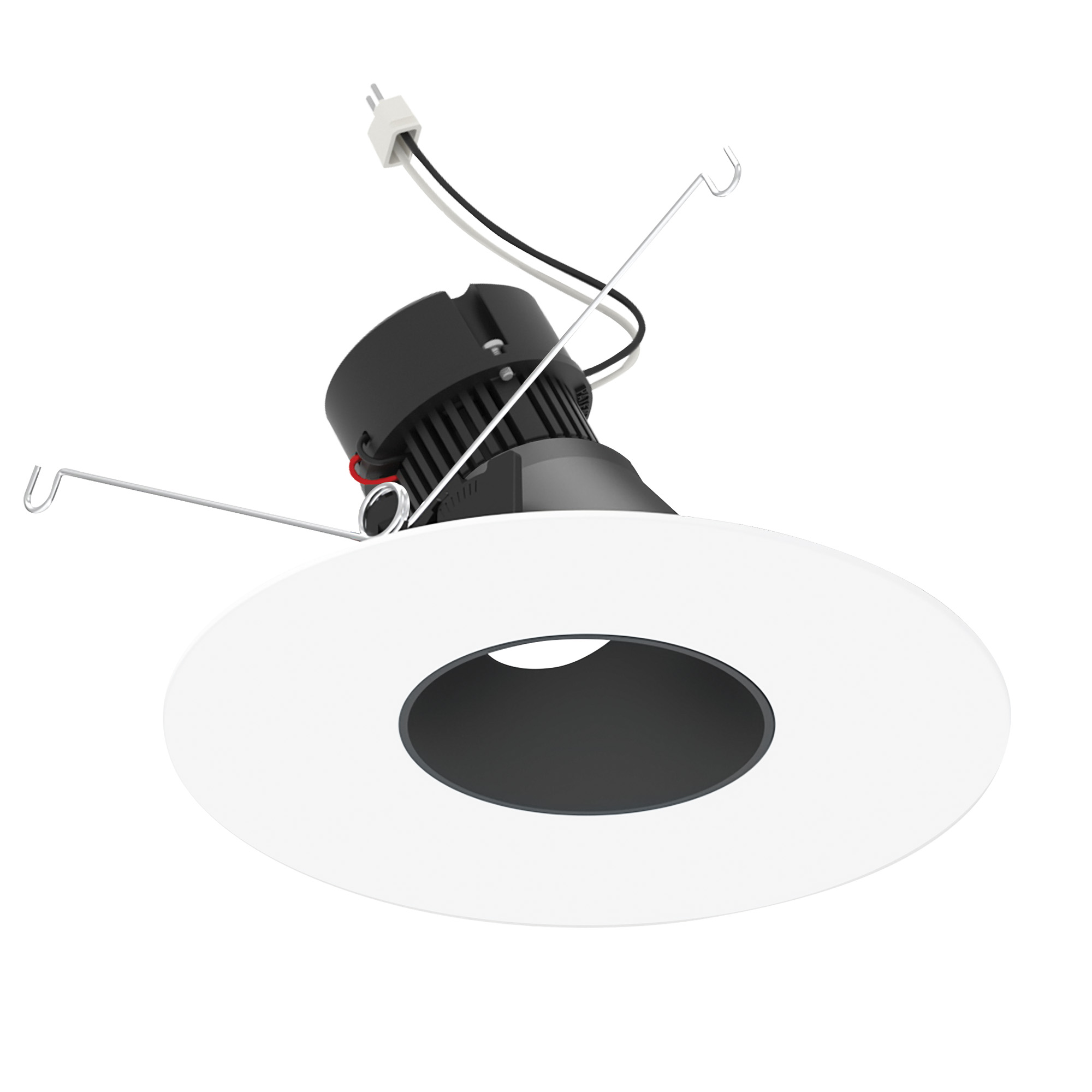

5"/6" Pearl 12V LED Round Adjustable Slot Retrofit

5″/6″ Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. Retrofit luminaires deliver over 1050 lumens with a regressed cone construction, which optimizes visual cut-off and adjusts up to 30°.

Input Voltage: 12V

Socket: GU5.3

Color Temperatures: 2700K, 3000K, 3500K, 4000K, Comfort Dim (warm dimming)

Lumens / Wattage: 1050lm (650lm with Comfort Dim) / 11W

Optics Included: Spot, Narrow Flood, Flood (field changeable)

Compatible Housings:
NLIC-601 = 6″ IC Air-Tight Double Wall New Construction
NL-601 = 6″ Non-IC New Construction
NLR-604 = 6″ Non-IC Remodel

• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

• Brochure
