NYLD2-6C

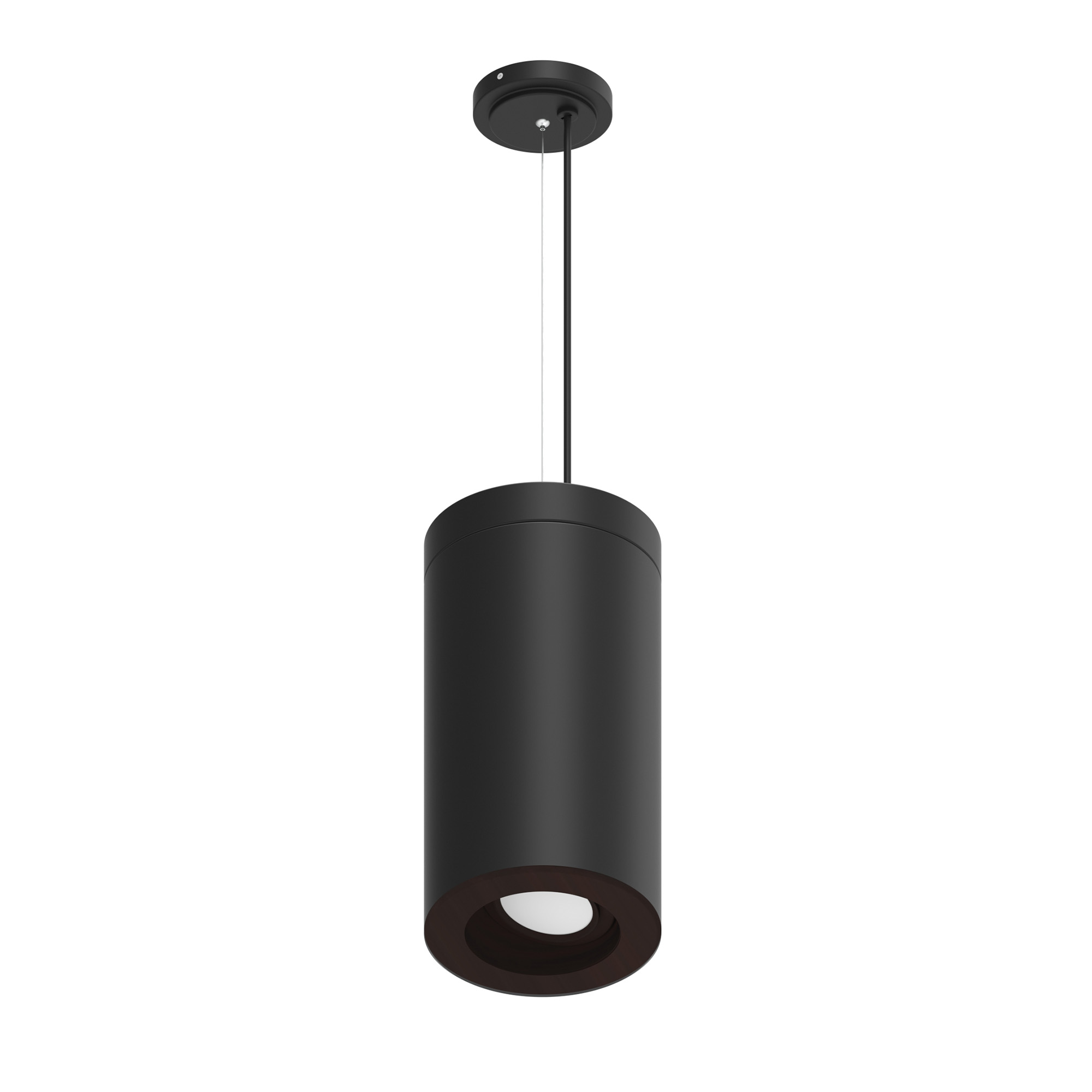

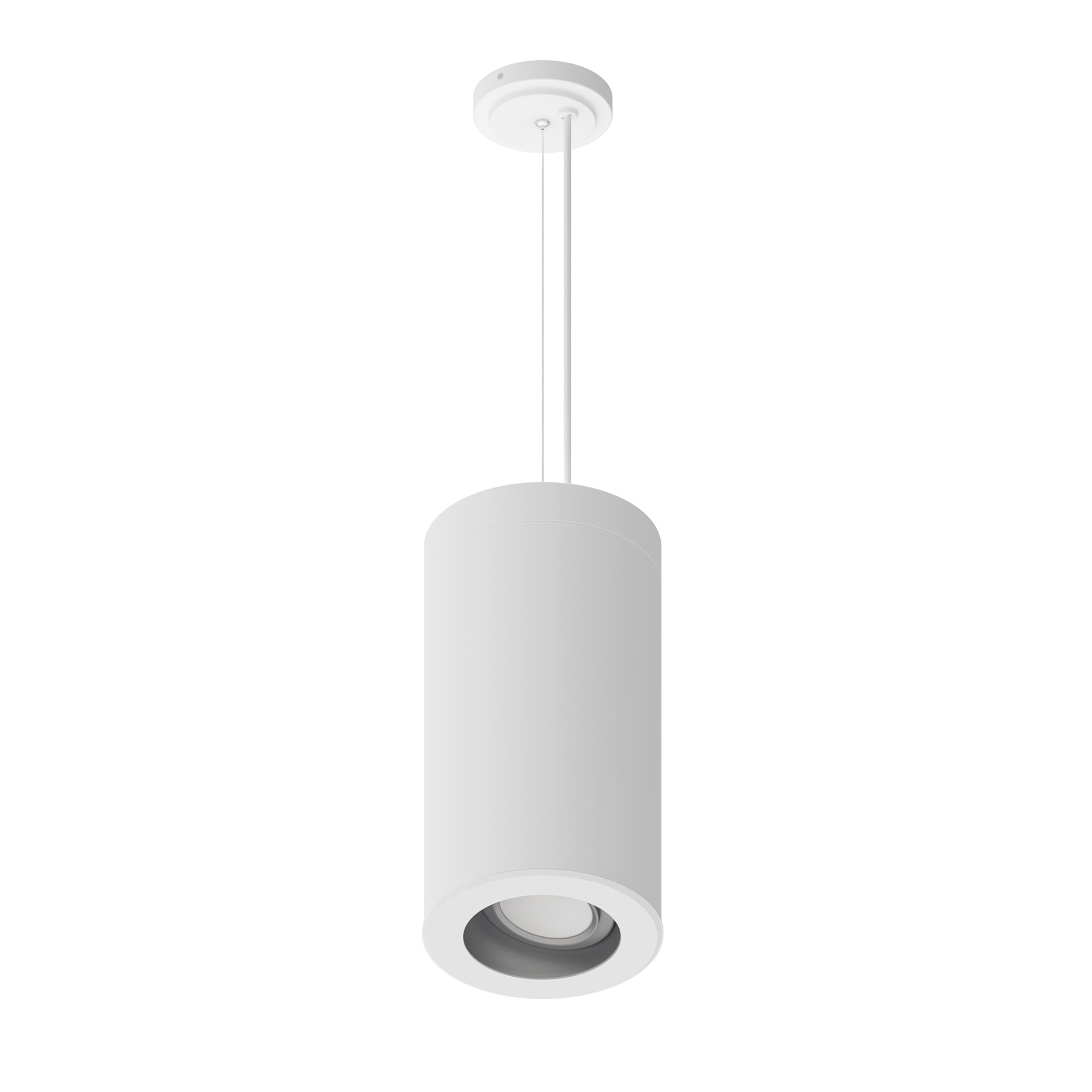

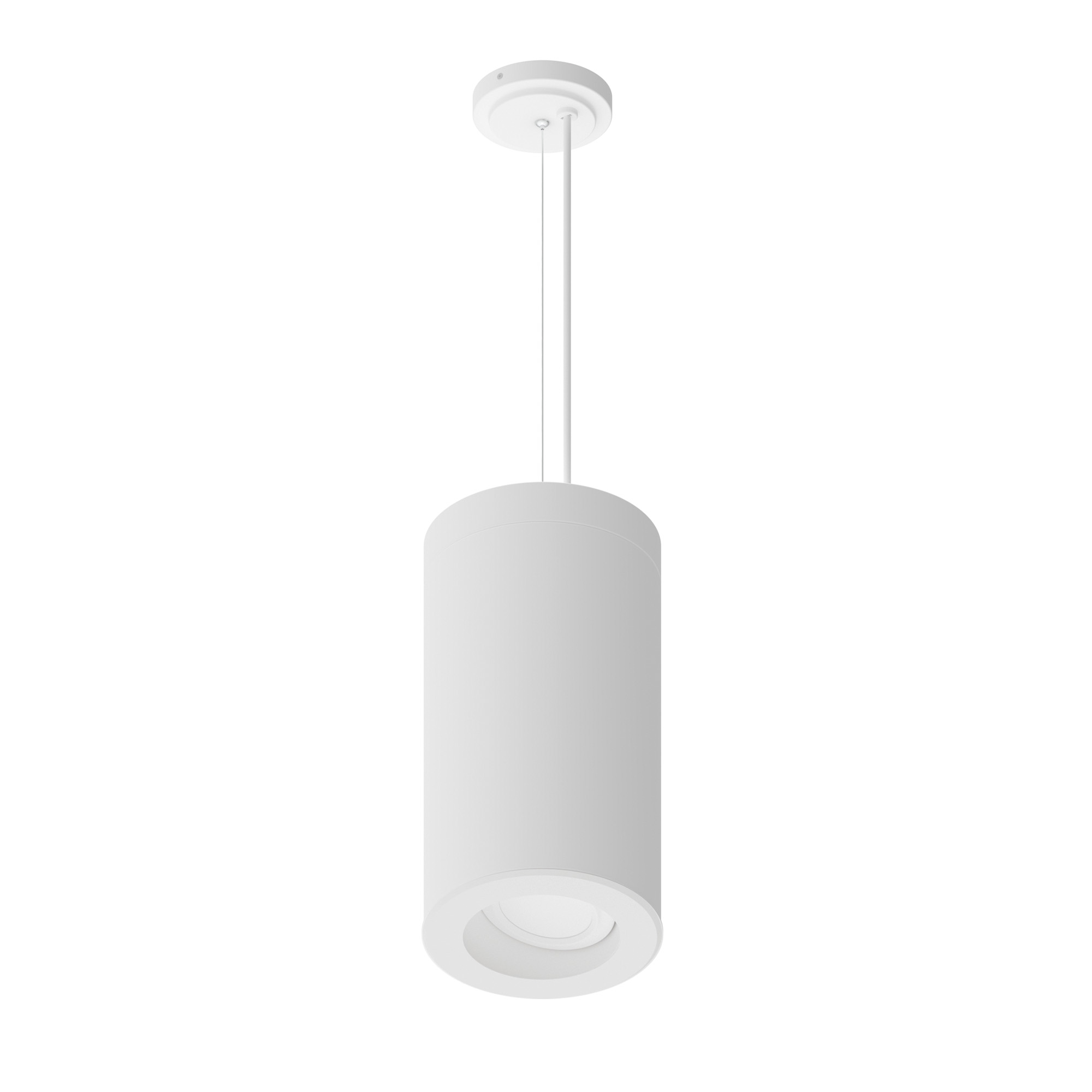

6" Cobalt Cylinder - Cable Mounted up to 1000lm

6″ Architectural grade LED cylinder featuring with deep set optics featuring a reflector or baffle cone for optimal visual comfort. Utilizing an array of LEDs, giving bright spectacular light output and low power consumption.

Features

  • 120V or 120/277V input
  • 750 or 1000 lumen LED packages
  • Also available in Surface, Stem or Wall mounted
  • Triac, ELV or 0-10V dimming options
  • 5-Year limited warranty
  • cULus listed for damp location with feed through
  • ENERGY STAR certified

Lumens / Wattage: 750lm / 12W or 1000lm / 12W

Color Temperature: 2700K, 3000K, 3500K, 4000K or Comfort Dim (3100K to 1700K)

Mounting: Cylinder comes with 8′ of field cuttable aircraft cable and offset cable (5-wire) for power and dimming

Reflector Styles: Available with Baffle or Reflector styles in 10 finishes

Categories: ,
• Photometric Layout

Downloads

• Specification Sheet

• Sales Sheet

• IES File

• Instruction Sheet

Additional information

Aperture Size

Light Source

Mounting Type

Dimming

,
